Overview - Engine Coolant Temperature Sensor

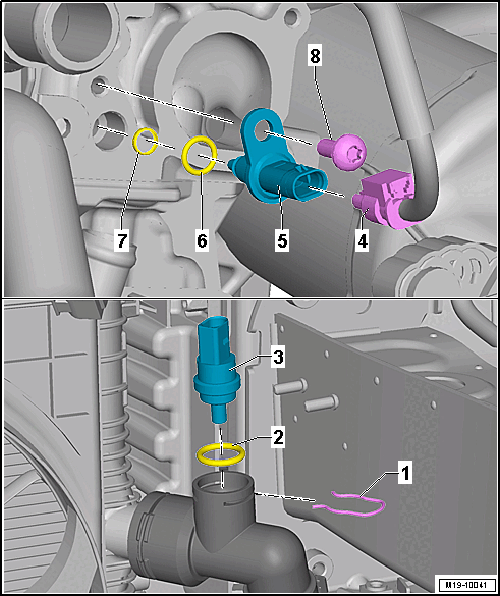

Fig 1: Exploded View Of Engine Coolant Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Clip
   • Make sure it is secure
2. O-Ring
   • Replace after removing
3. Engine Coolant Temperature Sensor on Radiator Outlet -G83-
   • Removing and installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING
4. Connector
   • On the Engine Coolant Temperature Sensor -G62-
5. Engine Coolant Temperature Sensor -G62-
   • Removing and installing. Refer to Engine Coolant Temperature Sensor -G62-, REMOVING AND INSTALLING
6. O-Ring
   • Replace after removing
   • Coat with coolant
7. O-Ring
   • Replace after removing
   • Coat with coolant
8. Bolt
   • 4 Nm +45°
   • Replace after removing
