Threaded Bushing, Removing And Installing: Removing

-- Raise the vehicle.

-- Remove the lower noise insulation. Refer to Noise Insulation .

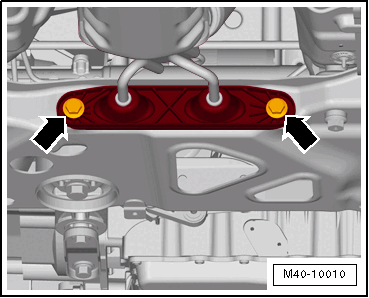

-- Remove the exhaust system bracket from the subframe -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

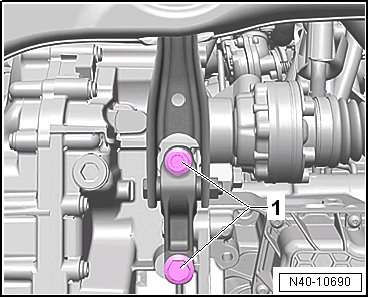

-- Remove the pendulum support bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

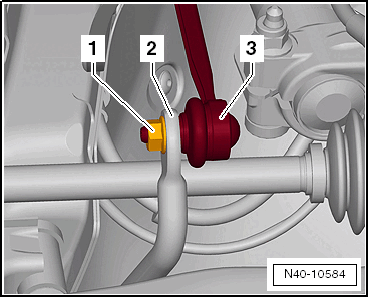

-- Remove the hex nut -1- from the right and left coupling rod -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coupling rod -3- from the stabilizer bar -2- on the left and right sides.

Vehicles with Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

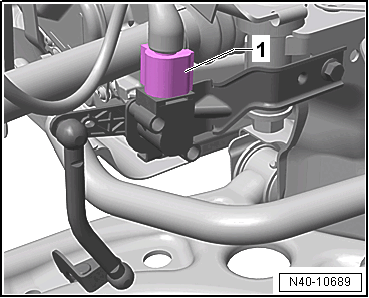

-- Disconnect the connector -1- from the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289-.

Continuation for All Vehicles

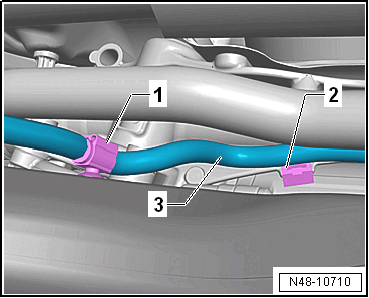

-- Remove the clips -1 and 2- for the wiring harness -3- from the subframe and the steering gear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

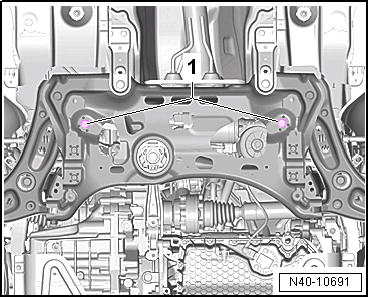

-- Remove the steering gear bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the steering gear out of the subframe alignment sleeves.

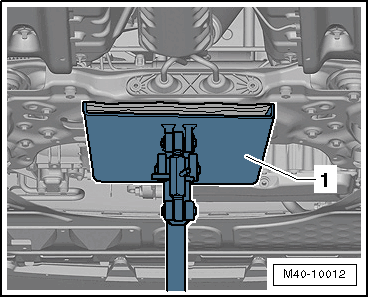

-- Place the :VAS6931  or :VAG1383A  -1- under the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the subframe (refer to SUBFRAME, SECURING ) and lower it approximately 10 cm.

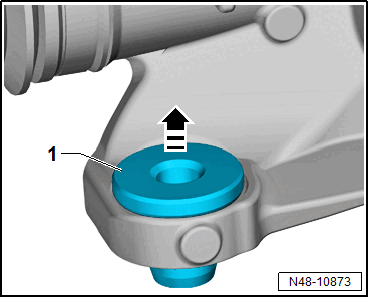

-- Drive out the threaded bushing -1- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
