Boot, Removing And Installing: Installing

Install in reverse order of removal and note the following:

-- Turn the steering wheel into straight ahead position.

-- Guide new clamp and boot onto the tie rod.

-- Lightly grease the sealing surface of the boot to the tie rod with Grease:G 052 168 A1  from the repair kit.

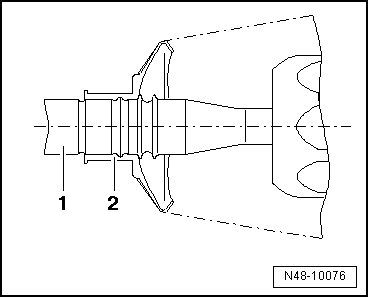

-- Slide the boot -2- onto the tie rod -1- as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the spring clamp on the boot using :VAG1275A  .

-- Lightly grease the sealing surface of the boot to the steering gear housing with Grease: G 052 168 A1  from the repair kit.

-- Push the boot all the way onto the steering gear housing.

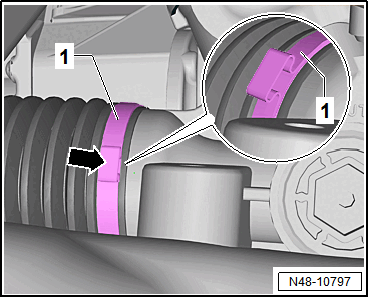

-- Clamp the new clamp -1- using the :VAS6199  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clamp the ear of the clamp -arrow- until it is as shown.

-- Install the tie rod end up to the marking made earlier during the removal. Refer to TIE ROD END, REMOVING AND INSTALLING .

-- Install the front wheel and tighten.

-- Perform a vehicle alignment. Refer to AXLE ALIGNMENT PROCEDURE .

-- If both tie rods were replaced, then the basic setting for the Steering Angle Sensor -G85- must be performed. Refer to Vehicle Diagnostic Tester.

-- Then perform the basic setting for the steering. Refer to Vehicle Diagnostic Tester.
