Steering Column, Handling And Transporting

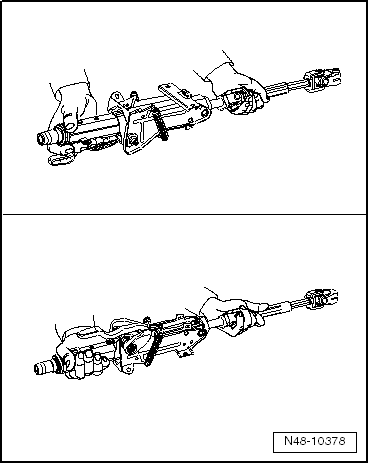

Correct Handling and Transport of Steering Column

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Transport the steering column with two hands.
• Hold the steering column by the upper outer steering column tube and in the area of the upper universal joint.

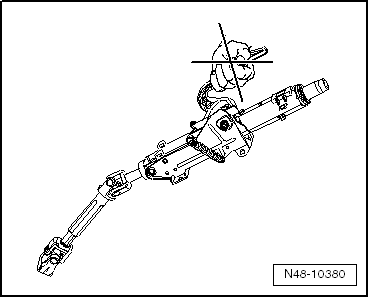

Incorrect Handling of Steering Column

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transporting at the clamping lever leads to pre-damage to the steering column.

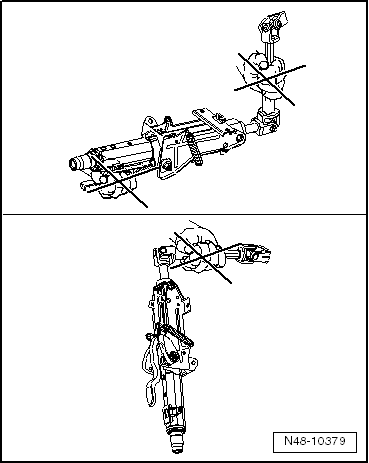

Incorrect Handling of Steering Column with Safety Risk

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The following handling techniques can lead to damage of the universal joint bushings, the lower steering column bearing and the steering column:

• Transporting steering column with one hand on joint shaft.
• Bending joints more than 90°.
