Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING: Removing

-- Remove the steering column switch module. Refer to Steering Column Switch Module, Removing and Installing .

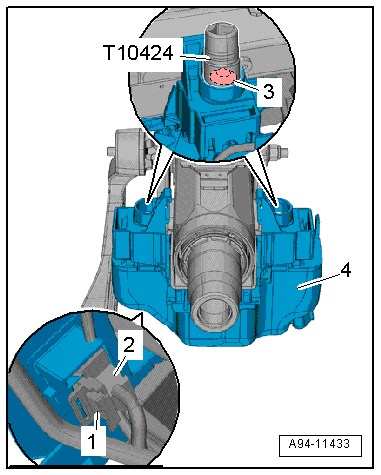

-- Disconnect the connector -2-. To do so push the retainer -1- toward the rear and push down the release.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the shear bolt -3- using the :T10424US

-- Remove the Electronic Steering Column Lock Control Module -J764- -4-.
