Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING: Installing
Install in reverse order of removal and note the following:

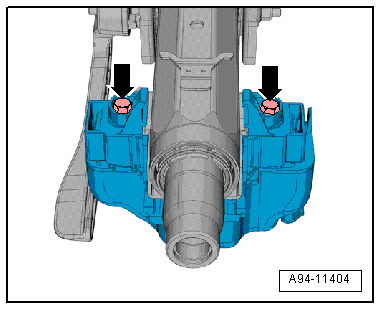

-- Tighten the new bolts -arrows- until the head break off.
-- Install the steering column switch module. Refer to Steering Column Switch Module, Removing and Installing .
-- Perform the operation using Vehicle Diagnostic Tester.
