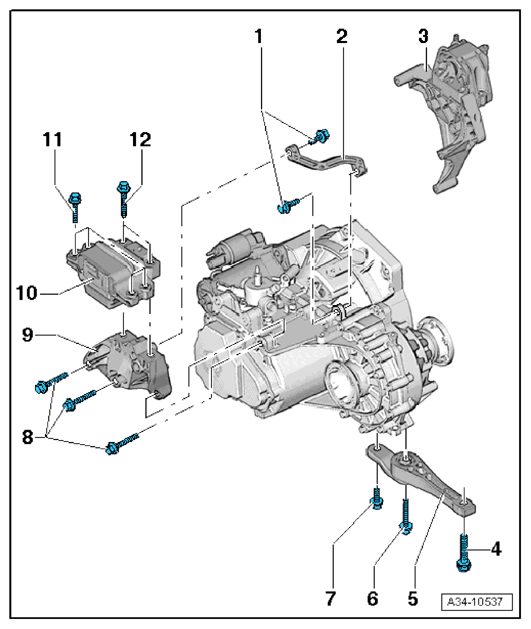

Overview - Subframe Mount: Notes
- Bolt
- 20 Nm +90°
- Replace after removing
- Transmission support to transmission bracket and transmission
- Tightening sequence. Refer to → Transmission Support to Transmission Bracket and Transmission
- Transmission Support
- To the transmission bracket and transmission
- Engine Mount with Engine Support
- Bolt
- Pendulum support to subframe
- Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , SUBFRAME MOUNT (CBPA, CKJA) , SUBFRAME MOUNT (CNLA, CRJA) , ASSEMBLY MOUNTS (CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA) and SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA) .→
- Pendulum Support
- Bolt
- Pendulum support to transmission
- Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA)
, SUBFRAME MOUNT (CBPA, CKJA)
, SUBFRAME MOUNT (CNLA, CRJA)
, ASSEMBLY MOUNTS (CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA)
and SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA)
.
- Bolt
- Pendulum support to transmission
- Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , SUBFRAME MOUNT (CBPA, CKJA) , SUBFRAME MOUNT (CNLA, CRJA) , ASSEMBLY MOUNTS (CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA) and SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA)
- Bolt
- 40 Nm +90°
- Tightening sequence → Transmission Bracket -A- to Transmission.
- Replace after removing
- Transmission bracket to transmission.
- Transmission Bracket
- Transmission Mount
- Check the adjustment. Refer to SUBFRAME MOUNT, ADJUSTING
- Adjusting. Refer to SUBFRAME MOUNT, ADJUSTING
- Bolt
- Transmission mount to chassis
- Refer to SUBFRAME MOUNT (CZCA, CZDA, CZTA) , SUBFRAME MOUNT (CBPA, CKJA) , SUBFRAME MOUNT (CNLA, CRJA) , ASSEMBLY MOUNTS (CVCA, CUUA, CUUB, DELA, DEBA, DEJA, DGMA) and SUBFRAME MOUNT (CPLA, CPPA, CPKA, CPRA)
- Bolt
- 60 Nm +90°
- Tightening sequence. Refer to → Attaching the Transmission Mount to the Transmission Bracket
- Replace after removing
- Transmission mount to transmission bracket
