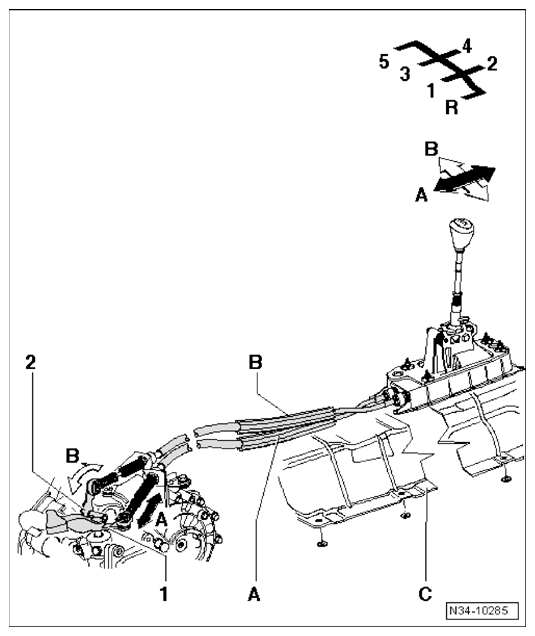

Selector Mechanism Installation Position

-Arrow A- Gearshift Lever Movement

-Arrow B- Selector Lever Movement

1. Gearshift Lever Cable
2. Selector Cable
3. Heat Shield
   • Remove the shift mechanism before removal.

1. Selector Lever
2. Relay Lever

   Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
