Overview - Shift Forks

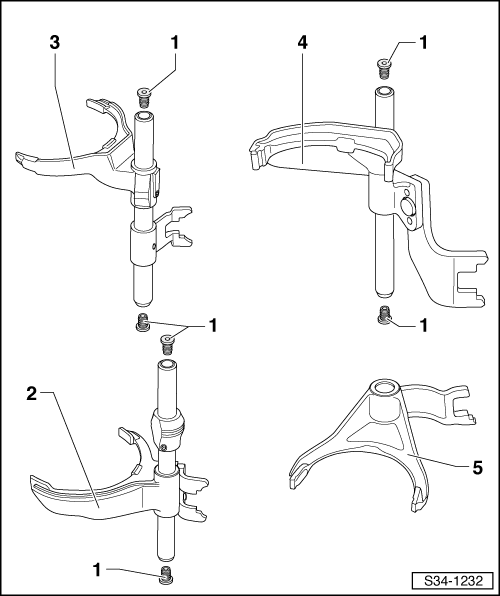

Fig 1: Exploded View Of Shift Forks
GWWS34-1232Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rubber Damper
    • Remove from the gearshift rod by hand and install.
  2. Gearshift Rod with 1st Gear and 2nd Gear Shift Fork
  3. Gearshift Rod with 3rd Gear and 4th Gear Shift Fork
  4. Gearshift Rod with 5th Gear and 6th Gear Shift Fork
  5. Reverse Gear Shift Fork

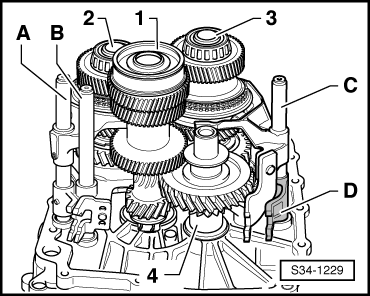

    • Is mounted on the gearshift rod with the 5th and 6th gear shift fork. Refer to Figure or Figure.
