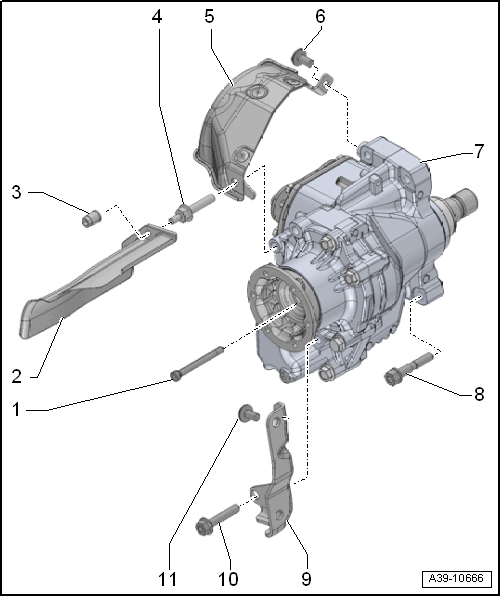

Overview - Bevel Box
- Bolt
- Tightening specification. Refer to OVERVIEW - DIFFERENTIAL, AWD AND FWD WITH FRONT AXLE DIFFERENTIAL LOCK .
- Heat Shield
- For drive axle
- Nut
- Tightening specification. Refer to OVERVIEW - DRIVE AXLE .
- Quantity: 2 or 3
- Bolt
- Tightening specification → Refer to DRIVESHAFT, REMOVING AND INSTALLING - 0D9 or DRIVESHAFT, REMOVING AND INSTALLING - 0D9, 0FB .
- Only on bevel box "0CN" for the heat shield at the bevel box
- Heat Shield
- For driveshaft
- Only on bevel box "0CN"
- Bolt
- Tightening specification. Refer to DRIVESHAFT, REMOVING AND INSTALLING - 0D9 or DRIVESHAFT, REMOVING AND INSTALLING - 0D9, 0FB .
- Only on bevel box "0CN" for the heat shield at the bevel box
- Bevel Box
- Removing. Refer to BEVEL BOX, REMOVING .
- Installing. Refer to BEVEL BOX, INSTALLING .
- Bevel box, differentiating, Golf and Golf Wagon. Refer to BEVEL BOX, DIFFERENTIATING, GOLF AND GOLF WAGON .
- Bolt
- Tightening specification. Refer to OVERVIEW - DIFFERENTIAL, AWD AND FWD WITH FRONT AXLE DIFFERENTIAL LOCK .
- Replace after removing
- Quantity: 4
- Transmission Support
- There are different versions. Refer to the parts information for the allocation.
- Bolt
- Tightening specification and sequence:
- "0AV" bevel box in CC and Passat. Refer to the appropriate service information. .
- "0AV" and "0CN" bevel box in Golf and Golf Wagon. Refer to Figure.
- Transmission support to bevel box
- Quantity: 2
- Bolt

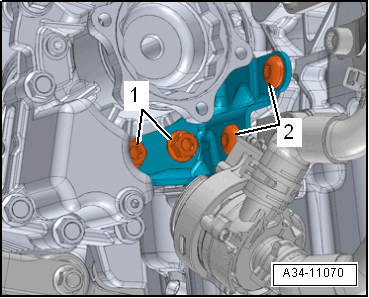

- Tightening specification and sequence:
- Bevel box "0AV". Refer to the appropriate service information. .
- Bevel box "0CN" and bevel box "0AV for Tiguan". Refer to Figure.
- Transmission support to engine
- Quantity: 2
