Airbag System, Checking

How to recognize: airbag units are identified by "AIRBAG" on them.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

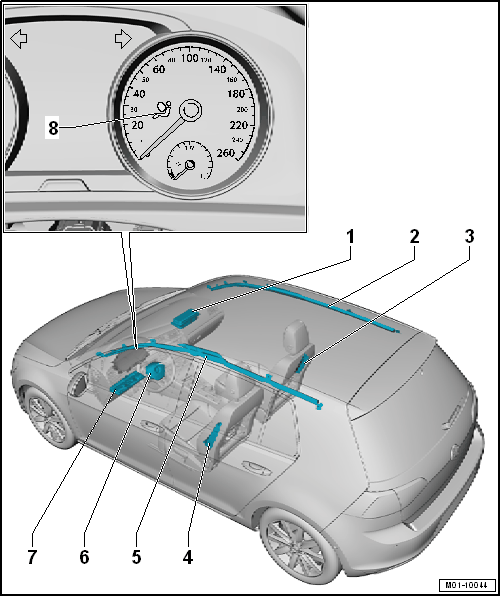

-- Visually inspect the Airbag Indicator Lamp -K75- -8-.

-- Visually inspect the driver side knee airbag -7- for damage on the outside.

-- Visually inspect the driver side airbag unit -6- for damage on the outside.

-- Visually inspect the driver head curtain airbag -5- for damage on the outside.

-- Visually inspect the driver side thorax airbag -4- for damage on the outside.

-- Visually inspect the front passenger side airbag unit -1- for damage on the outside.

-- Visually inspect the front passenger head curtain airbag -2- for damage on the outside.

-- Visually inspect the front passenger side thorax airbag -3- for damage on the outside.
