Battery, Checking Battery Terminal Clamp For Secure Fit: Notes

Special Tools And Workshop Equipment Required

Torque Wrench 1331 5-50 Nm :VAG1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Tight battery terminal clamps assure trouble-free battery function and long service life.

Make sure the terminal clamp is attached completely to the battery terminal.

WARNING:

If the battery clamp is not attached securely to the positive terminal, disconnect the battery ground strap on the battery negative terminal first to prevent possible accidents.

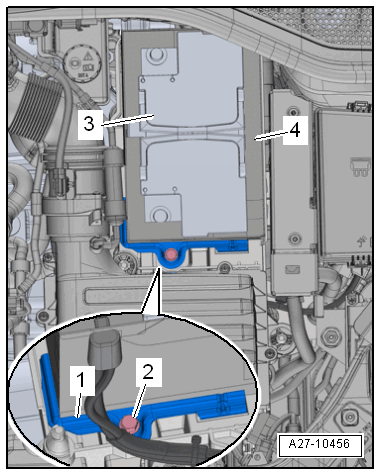

-- Open the cover on the heat shield boot -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the battery -3- is secure. Tighten the bolt -2- to the tightening specification.

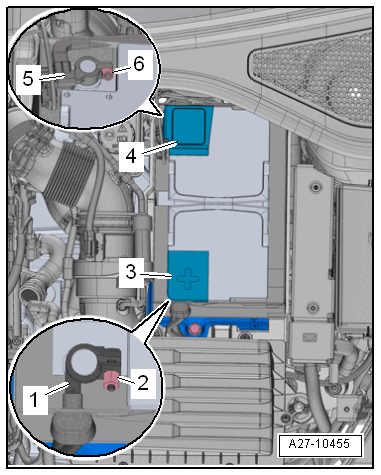

-- Open the cover -4- over the battery negative terminal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the battery terminal clamps -1 and 5- for a secure fit. If necessary, tighten the nuts -2 and 6-.
