Storage Compartment With Cell Phone Interface -R265-, Removing And Installing: Removing
-- Turn off the ignition and all electrical equipment.
-- Remove the ignition key, if equipped.
CAUTION:
Risk Of Damaging The Component Surfaces.
- When positioning a prying tool, put commercially available adhesive tape over the component in the visible area.
-- Fold the center console armrest up.

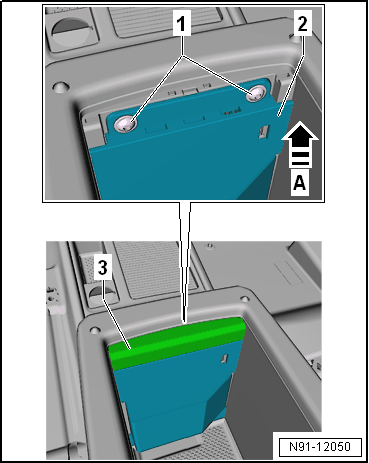

-- Pry off the cover -3- using the :3409 .
-- Remove the bolts -1-.
-- Remove the mounting plate -2- from the storage compartment in direction of -arrow A-
-- Release and disconnect the connectors.
-- Remove the coupler antenna on the back of the mounting plate downward.
