Control Module For Emergency Call Module And Communication Unit -J949-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment.

-- Remove the ignition key, if equipped.

-- Remove the Instrument Cluster -KX2-. Refer to INSTRUMENT CLUSTER -KX2-, REMOVING AND INSTALLING .

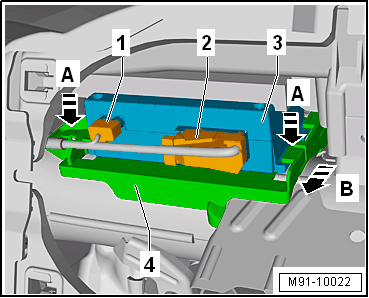

-- Disconnect the connectors -1- and -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the catches upward opposite of the -A arrows- and slide the Control Module for Emergency Call Module and Communication Unit -J949- -3- out toward the rear -arrow B-.
