Overview - Connection For External Multimedia Devices
There Are Several Versions Of The Connection For External Multimedia Devices:
- AUX IN - USB, UI4
- MEDIA-IN, UF8
- USB charging, UI2
Designations Are:
- External Audio Source Connection -R199-, UI4
- External Multimedia Device Interface -R215-, UF8
- USB Charging Socket 1 -U37-, UI2
The connection for external multimedia devices is connected to the Information Electronics Control Module 1 -J794-
Component Location Of Connection For External Multimedia Devices

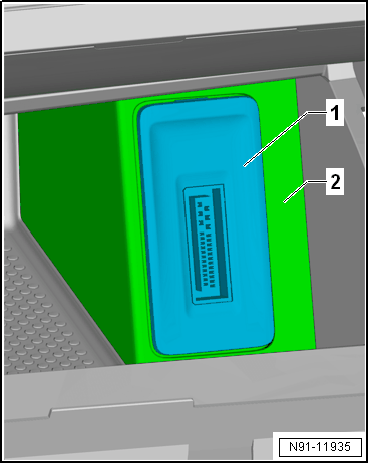

The connection for external multimedia devices -1- is located in the front center console storage compartment -2-.
Different External Audio Sources Can Be Connected To The Connection For External Multimedia Devices:
- iPod
- MP3 player
- USB Stick
The USB Charging Socket 1 -U37- is located in the center console storage compartment. It is a component of the Storage Compartment with Cell Phone Interface -R265- and serves as a charging connection for the Cellular Telephone -R54-.
Suitable adapter cables are needed. Refer to the Owner's Manual.
Fault finding is performed via Guided Fault Finding using the Vehicle Diagnostic Tester.
