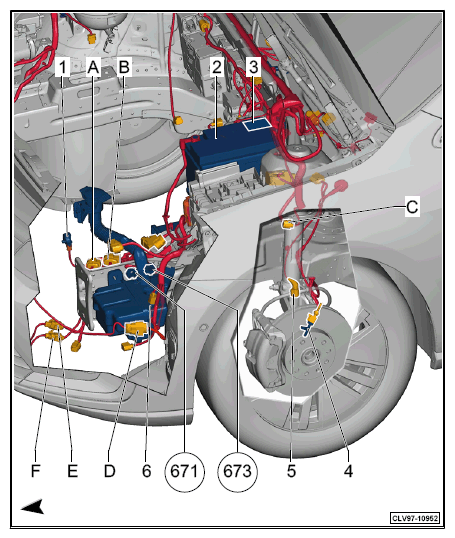

Engine Compartment, Left Part II
- 1 - Driver front airbag crash sensor -G283-
- 2 - Battery -A-
- 3 - Battery monitoring control module -J367-
- 4 - Left front ABS wheel speed sensor -G47-
- 5 - Windshield washer fluid level sensor -G33-
- 5 - Windshield washer pump -V5-
- A - 14-pin connector -T14r-
- A - 14-pin connector -T14t-
- B - 14-pin connector -T14u-
- B - 14-pin connector -T14v-
- C - 6-pin connector -T6cj-
- C - 6-pin connector -T6cq-
- D - 8-pin connector -T8au-
- D - 8-pin connector -T8az-
- E - Double connector -T2ca-
- E - 3-pin connector -T3ds-
- F - 4-pin connector -T4er-
- F - 4-pin connector -T4es-
- 671 - Ground connection 1 on left front longitudinal member
- 673 - Ground connection 3 on left front longitudinal member
