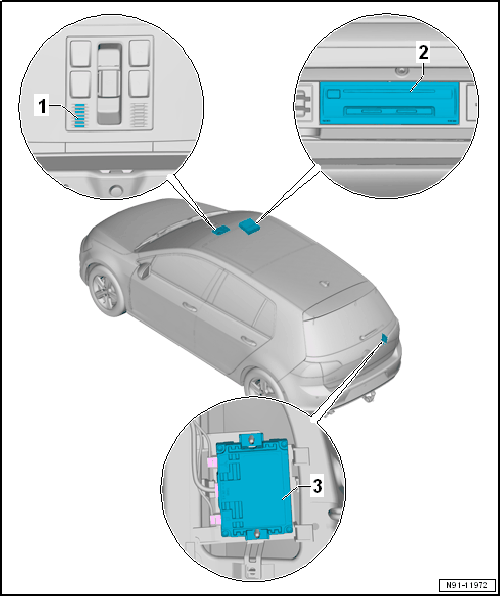

Component Location Overview - Telephone System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Telephone Microphone -R38-
   • In the Front Interior Lamp -W1-
   • Removing and installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
2. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
3. Cellular Telephone Amplifier -R86-
   • Behind the luggage compartment trim panel on the right side
   • Removing and installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
