Engine Number/Engine Characteristics

Engine Number

Engine number ("engine code" and "serial number") is located next to vibration damper -arrow- on cylinder block.

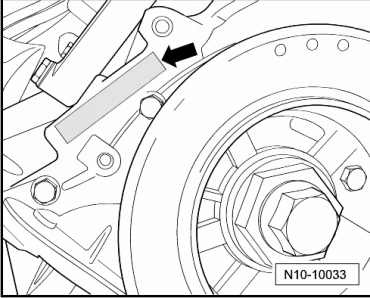

Fig 1: Identifying Engine Number Located Next To Vibration Damper

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

In addition, a sticker with the "engine code" and "serial number" is affixed to the back of the cylinder head cover.

The first three digits describe the mechanical structure of the engine and are still stamped on the engine. The fourth digit describes the engine output and torque and depends on the Engine Control Module (ECM). Four-digit engine codes are found on the type plate and vehicle data label. It can also be read via the ECM.

Vehicle data label locations. Refer to VEHICLE DATA LABEL

Engine Data
