Tire Pressure Monitor System Reset
CAUTION:
DO NOT reset TPM system until all problems are fixed and tire pressure in all tires has been adjusted. If reset procedure is done when tire pressures are incorrect, TPM system will not work properly and may not set an alert when a tire pressure is low or high.
- Set the tire pressure of all wheels to specified pressure.
- With vehicle stopped and parking brake applied, turn ignition switch to ON position.

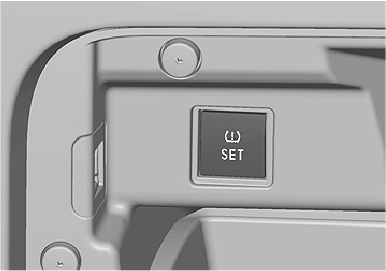

- Press TPMS SET button until an audio signal is heard. The signal confirms basic setting. See Fig 1.NOTE: On some models, the SET button is located inside the glove compartment. There may be models where the SET button is located next to the gearshift lever.
