Special Tools

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

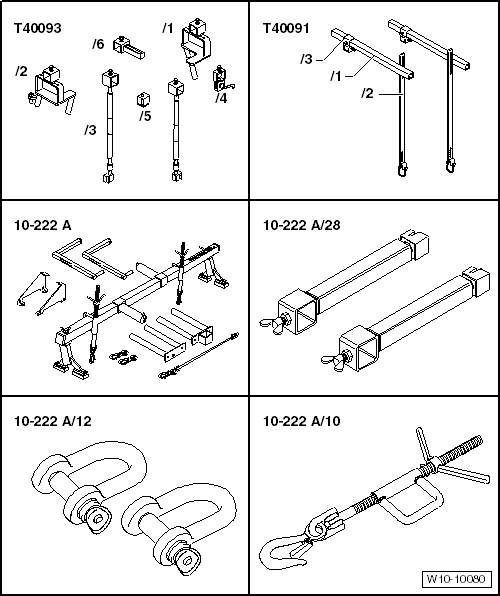

Engine Support Bridge :10-222A
Engine Support - Automatic Transmission Hook :10-222A/7
Engine Support - Bracket w/Spindle and Hook :10-222A/10
Engine Support Bridge - Engine Support 28 :10-222A/28
Engine Support Bridge - Engine Support 31 :10-222A/31
Rail with Holes :T40091/2 from Engine Support - Basic Set :T40091
Engine Support - Supplement Kit Mount 5 :T40093/5 from the Engine Support - Supplement Kit :T40093A
Engine Support Bridge - Engine Support 28-2 :10-222A/28-2 , quantity: 2
Square Pipe :T40091/1 (quantity 2) from the Engine Support - Basic Set :T40091
Movable Joint :T40091/3 (quantity 2) from the Engine Support - Basic Set :T40091
Movable Joint :T40093/4 (quantity 2) from the Engine Support - Supplement Kit :T40091

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Special Tools And Workshop Equipment Required

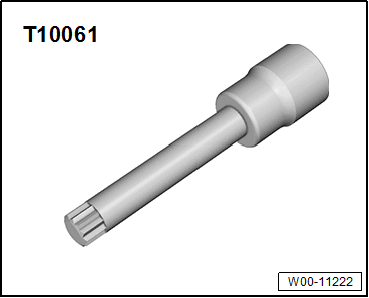

Socket - Xzn 14 :T10061

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

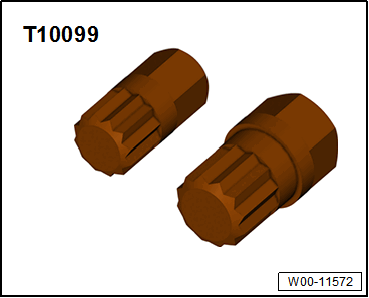

Bits for VAG1331/13 :T10099

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

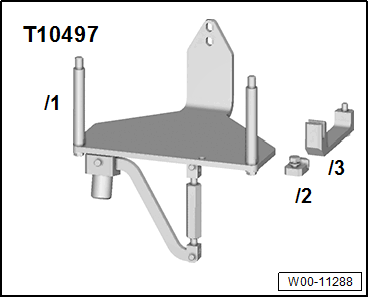

Engine Support :T10497

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

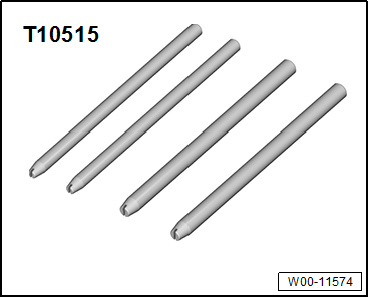

Centering Mandrel :T10515

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

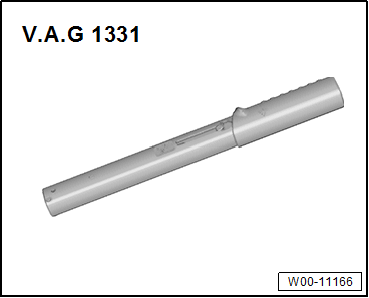

Torque Wrench 1331 5-50Nm :VAG1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Transmission Holder :VAS6095

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane :VAS6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

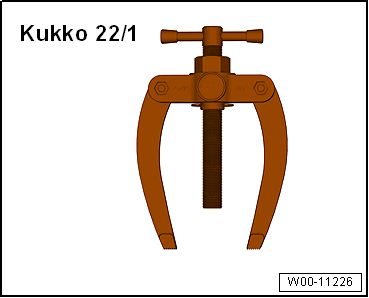

Counter-support for example Puller - Kukko Counterstay :22/1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

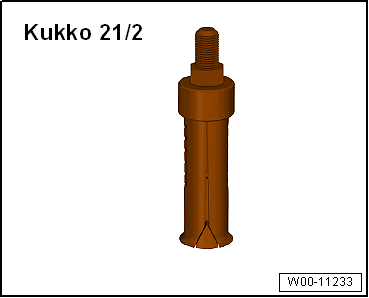

Internal puller Puller - Kukko Internal - 14-19mm : 21/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

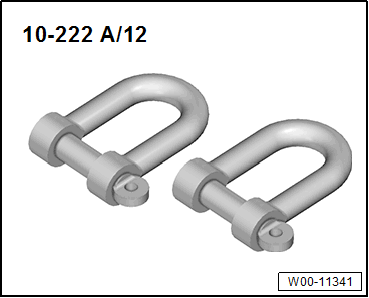

Engine/Gearbox Support Shackle (2 pc.) :10-222A/12

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

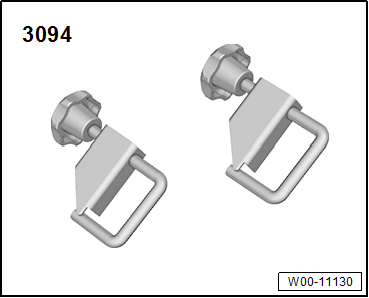

Hose Clamps - Up To 25 mm:3094

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

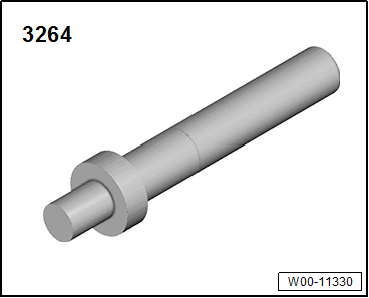

Bearing Installer - Crankshaft Pilot Bearing :3264

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Scissor Lift Table - Adapter Set - Articulated Joint Support :VAS6131/16-3
