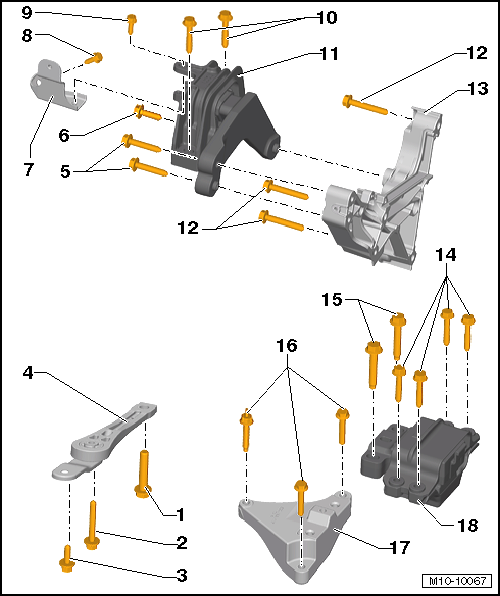

Overview - SUBFRAME Mount: Notes
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Tightening specification and sequence. Refer to Figure.
- Replace after removing.
- Bolt
- Tightening specification and sequence. Refer to Figure.
- Replace after removing.
- Bolts
- Tightening specification and sequence. Refer to Figure.
- Replace after removing.
- Pendulum Support
- Removing and installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm +90°
- Replace after removing.
- Bolt
- 40 Nm +90°
- Replace after removing.
- Engine mount to engine mount bracket
- Bracket
- Bolt
- 20 Nm +90°
- Replace after removing.
- Bolt
- 20 Nm +90°
- Replace after removing.
- Bolt
- 40 Nm +90°
- Replace after removing.
- Engine Mount
- With support arm
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm +90°
- Replace after removing.
- Engine Mount Bracket
- Tightening specification and sequence. Refer to Tightening Specifications And Sequence For Engine Bracket .
- Removing and installing. Refer to ENGINE BRACKET, REMOVING AND INSTALLING .
- Bolt
- 50 Nm + 90°
- Replace after removing.
- Bolt
- 60 Nm +90°
- Replace after removing.
- Bolt
- 40 Nm +90°
- Replace after removing.
- Transmission Bracket
- Transmission Mount
- With support arm
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
NOTE:
Replace the bolts that were tightened with an additional turn.
