Engine, Securing To Engine And Transmission Holder: Procedure

WARNING: This page is about a different variant/trim than selected.

The transmission is separated from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .
Electric Drive Motor -V141-, separating from engine. Refer to Electric Drive Motor -V141-, SEPARATING FROM ENGINE .
:T10515/1 and :T10515/2 , removing from the engine.

-- Remove the resonator for the intake air scoop. Refer to INTAKE AIR SCOOP RESONATOR, REMOVING AND INSTALLING .

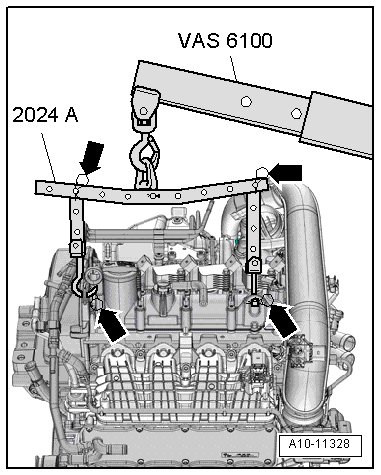

-- Engage the :2024A on engine and on :VAS6100 as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The rail with holes must be inserted as shown to align it to the center of gravity of the assembly.

NOTE:

Risk of accident due to loose engine support bridge components.

Lifting hooks and pins on the engine sling must be secured with securing pins -arrows-.

-- Lower the engine from the T10497 using the :VAS6100 .

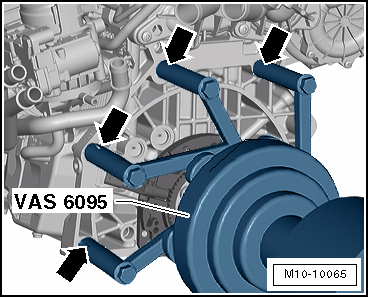

-- Secure the engine to the :VAS6095 as illustrated.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
