Engine, Installing: Procedure

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

NOTE:

Replace the bolts that were tightened with an additional turn.

Replace the self-locking nuts and bolts, gaskets, seals and O-rings.

Secure hose connections with standard production clamps.

During installation, all cable ties must be installed at the same location.

-- Guide the engine/transmission assembly with a second technician into the body using the :VAS6131B  .

-- Install all the engine mount bolts completely by hand.

GWWM10-10049Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -2 and 3-. The bolt -3- is accessible through the right wheel housing.

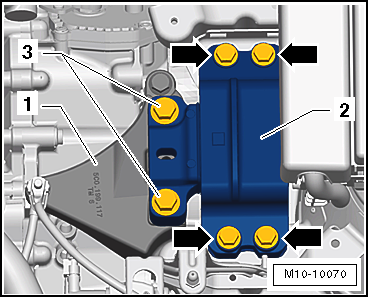

-- Install the bolts -3- for the transmission mount by hand all the way.

GWWM10-10070Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

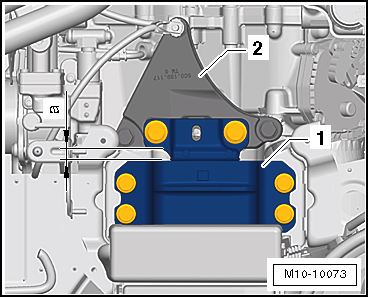

-- Align the transmission mount -1- with the transmission bracket -2- so that the distance -a- is the same.

GWWM10-10073Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

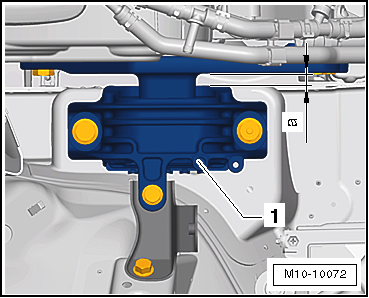

-- Align the engine mount -1- so that the distance -a- is the same.

GWWM10-10072Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

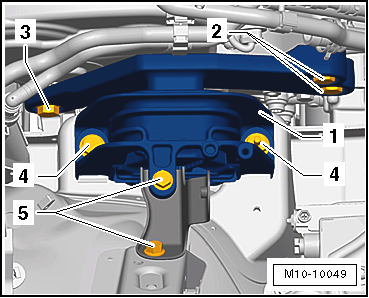

-- Tighten the bolts -4-.

GWWM10-10049Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bracket and tighten the bolts -5-.

NOTE:

The bolts are only tightened to the final tightening specification after the subframe mounts have been adjusted. Refer to SUBFRAME MOUNT, ADJUSTING .

-- Remove the T10497 from the engine.

-- Install the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .

-- Install the drive axles. Refer to DRIVE AXLE .

-- Install the selector lever cable. Refer to SELECTOR MECHANISM (02Q, 02QA) , SELECTOR MECHANISM (0CG) and SELECTOR MECHANISM (0AF) .

-- Install the Electrical A/C Compressor -V470-. Refer to A/C COMPRESSOR .

-- Electrical connections and routing. Refer to RELAY CARRIERS, FUSE PANELS AND E-BOXES and the Appropriate Wiring Diagram.

-- Install the Engine Control Module -J623-. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

-- Connect the coolant hoses with the connector coupling. Refer to the figure below;

GWWA19-10572Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install subframe with steering gear. Refer to SUBFRAME .

-- Install the pendulum support. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .

-- Install the wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Mount the front wheels. Refer to WHEEL, CHANGING or WHEELS AND TIRES .

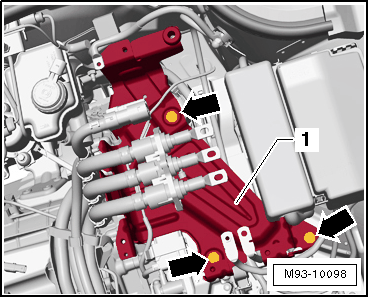

-- Install the Electric Drive Power and Control Electronics -JX1- bracket. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS .

GWWM93-10098Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

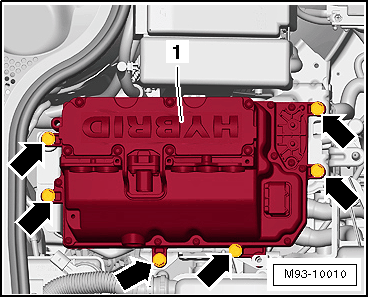

-- Install the Electric Drive Power and Control Electronics -JX1-. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS .

GWWM93-10010Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

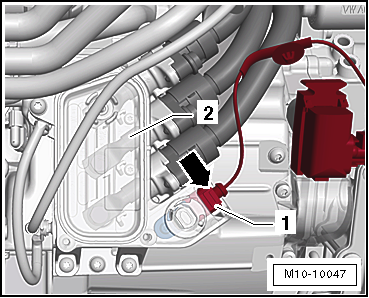

-- Connect the connector -1- to the contact switch for the connection box -2- for the Electric Drive Motor -V141-.

GWWM10-10047Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

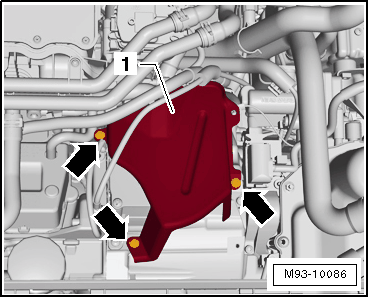

-- Install the connection box protective plate for the Electric Drive Motor -V141- -1-.

GWWM93-10086Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

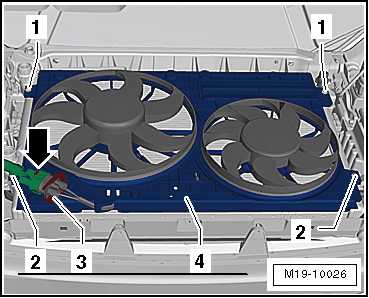

-- Install the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

GWWM19-10026Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fill with coolant. Refer to COOLANT, DRAINING AND FILLING .

NOTE:

The drained coolant may be used again only if the cylinder head or the cylinder block were not replaced.

Do not use dirty coolant again.

Vehicles With Secondary Air System

GWWM26-10028Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

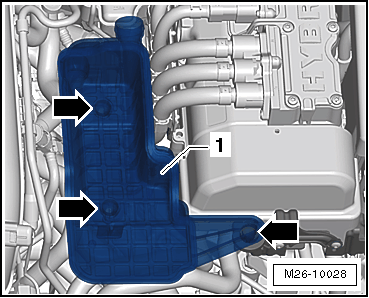

-- Install the damper -1-.

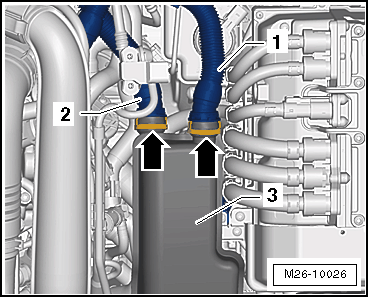

-- Attach the air line -1 and 2- to the damper -3-.

GWWM26-10026Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation For All Vehicles

GWWM26-10031Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

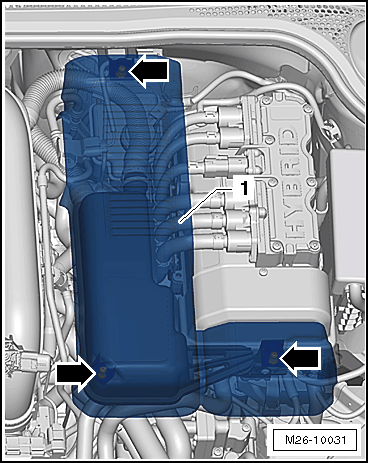

-- Install the damper cover -1-.

-- Connect the 12V battery. Refer to BATTERY .

CAUTION:

Extremely dangerous due to high-voltage.

Severe bodily injury or death by electrocution is possible.

- Have a qualified person put the high-voltage system back into service.

-- Bring the high-voltage system back into operation. Refer to HIGH VOLTAGE SYSTEM, TURNING BACK ON .
