Engine And Transmission, Separating: Procedure

WARNING: This page is about a different variant/trim than selected.

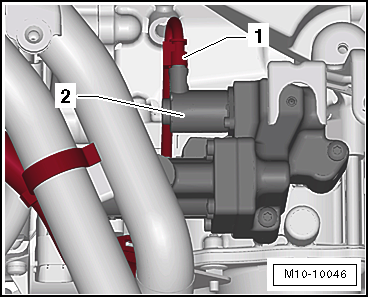

-- Disconnect the connector -1- from the Mechatronic switch valve -2- and remove the wiring harness from the front bracket on the transmission.

GWWM10-10046Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

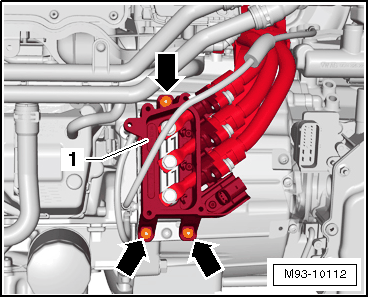

-- Remove the Drive Motor High-Voltage Wiring Harness -PX2- together with the connection box -1- from the transmission. Refer to HIGH VOLTAGE CABLES .

GWWM93-10112Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

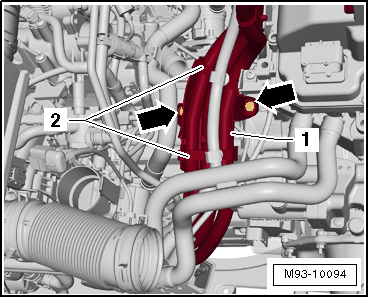

-- While doing so, also remove the wiring bracket -1- for the Drive Motor High-Voltage Wiring Harness -PX2- from the transmission -arrows-. Refer to HIGH VOLTAGE CABLES .

GWWM93-10094Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

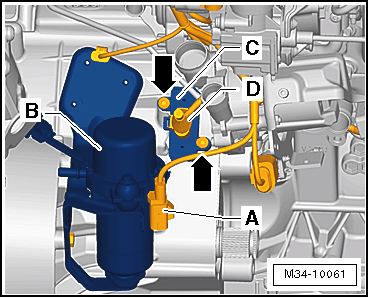

-- Release and disconnect the connector -A- from the Brake System Vacuum Pump - V192- -B-.

GWWM34-10061Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket with the Brake System Vacuum Pump -V192- -B- from the transmission and tie up on the side of the engine.

-- Release and disconnect the connector -D- from the Drive Motor Rotor Position Sensor 1 -G713- -C-.

-- Remove the bolts -arrows- and remove the Drive Motor Rotor Position Sensor 1 -G713-.

NOTE:

Danger of contamination.

Thoroughly clean the connection points and the surrounding area before loosening.

The Mechatronic hydraulic system is now open. Dirt can cause the system to malfunction.

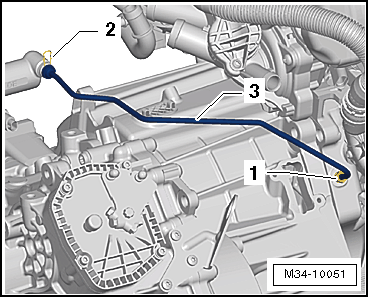

-- Remove the nut -1- for the hydraulic pipe -3- from the engine.

GWWM34-10051Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the clamps -2- from the valve block/Mechatronic.

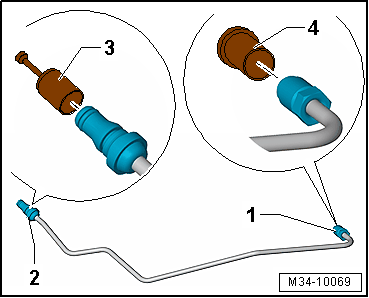

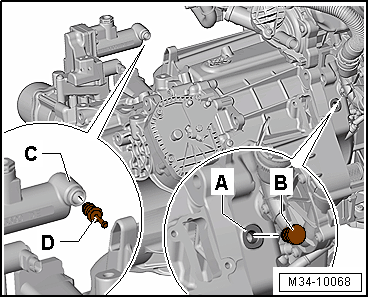

-- Pull the hydraulic line -3- at the same time out of the engine and valve block.

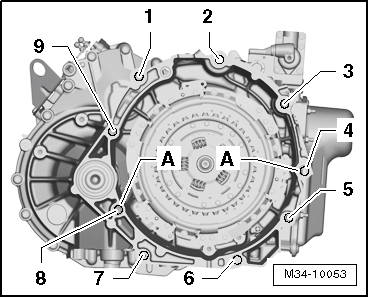

-- Remove the transmission/engine bolts -1 through 7-.

GWWM34-10053Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

The bolts -3 and 4- can be loosened using the :T10099/1  .

Bolts -8 and 9- remain installed.

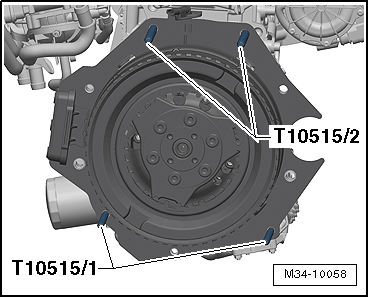

-- Insert the :T10515  into the engine as shown.

GWWM34-10058Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

To improve clarity, the transmission is not shown in the illustration.

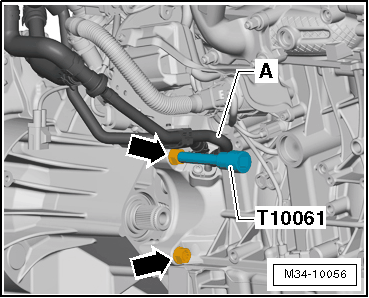

-- Remove the engine/transmission connecting bolts -arrows- from the engine side, for example, using the :T10061  . Pay attention to the coolant line -A- at the same time.

GWWM34-10056Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the transmission off the alignment sleeves on the engine.

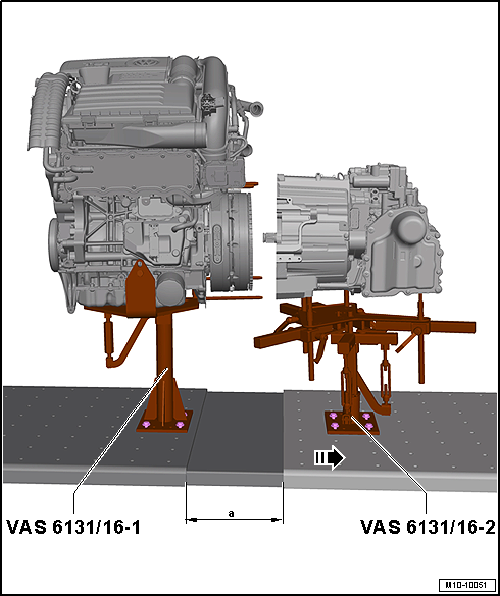

-- Loosen the rolling platform locking mechanism from the :VAS6131B  on the left and right sides.

GWWM10-10051Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully remove the transmission in the direction of -arrow- from the engine, while being careful not to damage the connections on the Electric Drive Motor -V141- and the Drive Motor Temperature Sensor -G712-.

-- Remove the transmission from the engine the maximum distance -a- and secure the rolling platform to prevent it from moving.
