Engine Cover, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

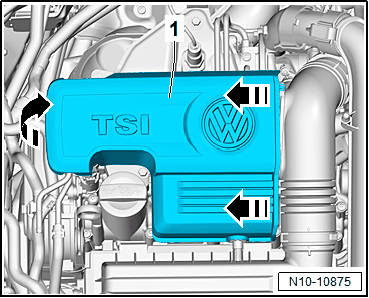

-- Remove the engine cover -1- first carefully in the direction of the arrow -a- from the retaining pin.

GWWN10-10875Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Then remove the engine cover -1- in the direction of the arrow -b- from the guides.
