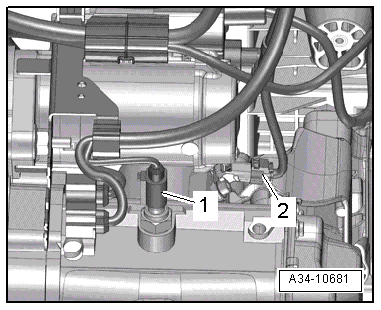

Component Location Overview - Electrical Components, Manual Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Back-Up Lamp Switch -F4-
   • Component location: under the starter
   • Removing and Installing. Refer to OVERVIEW - INPUT SHAFT, OUTPUT SHAFTS, DIFFERENTIAL, GEARSHIFT RODS .
2. Transmission Neutral Position Sensor -G701-
   • Installed location: in the area of the shift unit under the selector shaft bracket.
   • Removing and Installing. Refer to OVERVIEW - INPUT SHAFT, OUTPUT SHAFTS, DIFFERENTIAL, GEARSHIFT RODS .
