Component Location Overview - Electrical Components, Clutch Mechanism

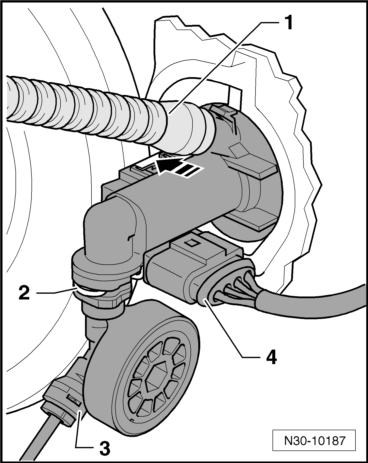

Clutch Position Sensor -G476- -arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installed location: In the engine compartment under the supply hose -1- on the clutch master cylinder -2- behind the wire -3-.

The connector -4- is on the Clutch Position Sensor -G476-.

Clutch Position Sensor -G476-, Removing and Installing. Refer to Clutch Position Sensor -G476-, REMOVING AND INSTALLING .
