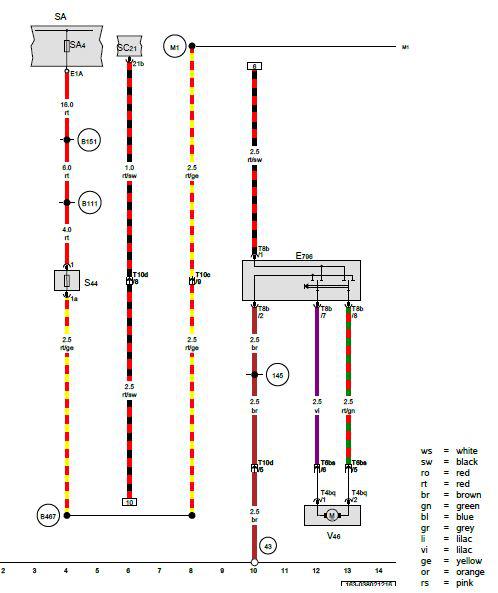

Backrest Adjustment Button 2, Fuse Panel A, Front Passenger Backrest Adjustment Motor
E796 Backrest adjustment button 2
S44 Driver power seat adjustment circuit breaker 1
SA Fuse panel A
SA4 Fuse 4 (on fuse panel A)
SC21 Fuse 21 (on fuse panel C)
T4bq 4-Pin connector
T6bs 6-Pin connector
T8b 8-Pin connector
T10c 10-pin connector, under the driver seat
T10d 10-pin connector under the front passenger seat
V46 Front passenger backrest adjustment motor
43 Ground connection on A-pillar, lower right
145 Ground connection 3 (in heated seats wiring harness)
B111 Positive connection 1 (30a) (in interior wiring harness)
B151 Positive connection 3 (30a) (in interior wiring harness)
B467 Connection 3 (in main wiring harness)
M1 Positive connection 1 (30) (in seat adjustment wiring harness)
