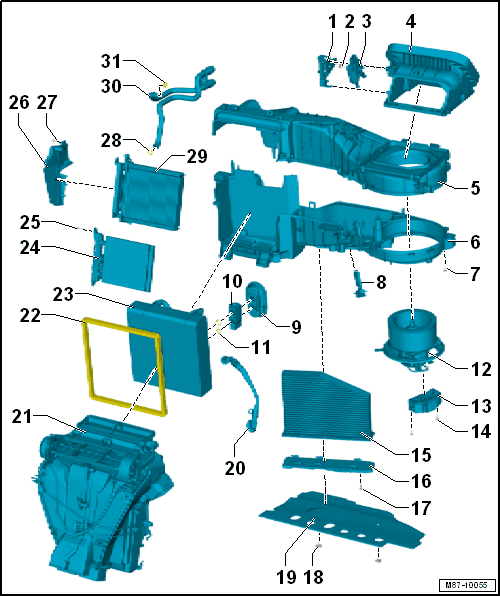

Overview - Heater And A/C Unit, CLIMATRONIC
- Bracket
- Bolt
- 1.5 Nm
- Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-
- Overview - Adjustment Motors. Refer to COMPONENT LOCATION OVERVIEW - FRONT ACTUATORS
- Removing and installing. Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
- Air Intake Duct
- Removing and installing. Refer to AIR INTAKE DUCT, REMOVING AND INSTALLING .
- Housing
- Upper Section
- Heater and A/C Unit, Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Heater and A/C Unit, Disassembling and Assembling. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Housing
- Lower Section
- Heater and A/C Unit, Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
- Heater and A/C Unit, Disassembling and Assembling. Refer to HEATER AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Bolts
- 1.5 Nm
- Evaporator Temperature Sensor -G308-
- Removing and installing. Refer to Evaporator Temperature Sensor -G308-, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
- Expansion Valve
- Removing and installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
- Seals
- Replace after removing.
- Coat lightly with refrigerant oil before installing.
- Quantity: 2
- Fresh Air Blower -V2-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
- Fresh Air Blower Control Module -J126-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and installing. Refer to Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
- Bolts
- 1 Nm
- Quantity: 2
- Dust and Pollen Filter
- Removing and installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- Cover
- For dust and pollen filter
- Bolt
- 1 Nm
- Bolts
- 0.3 Nm
- Quantity: 2
- Partition
- Removing and installing. Refer to PARTITION, REMOVING AND INSTALLING .
- Condensation Water Drain
- Checking using the Vehicle Diagnostic Tester. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Removing and installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Air Distribution Housing
- Removing and installing. Refer to AIR DISTRIBUTION HOUSING, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
- Check the foam seals for damage and that they are correctly bonded
- Evaporator
- Removing and installing. Refer to EVAPORATOR, REMOVING AND INSTALLING .
- Auxiliary Heater Heating Element -Z35-
- Checking using the Vehicle Diagnostic Tester. Refer to Auxiliary Heater Heating Element -Z35-, CHECKING .
- Removing and installing. Refer to Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING .
- Bolts
- 2 Nm
- Cover
- Depending on vehicle equipment
- Bolts
- 2 Nm
- Quantity: 4
- Seals
- Replace after removing.
- Coat with coolant before assembly
- Heater Core
- Removing and installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Coolant Pipes
- Supply and return
- Seals
- Replace after removing.
- Coat with coolant before assembly
