Heater And A/C Unit, Disassembling And Assembling: Disassembling

-- Remove the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

-- Remove the air distribution housing. Refer to AIR DISTRIBUTION HOUSING, REMOVING AND INSTALLING .

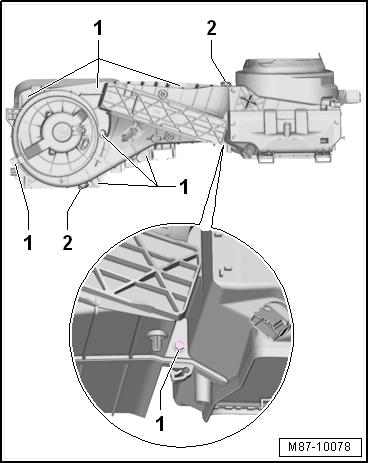

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clamps -2-.

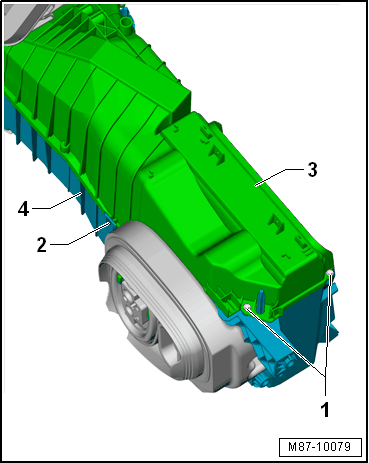

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clamp -2-.

-- Remove the heater and A/C unit upper section -3- from the lower section -4-.
