Display Control Head, Removing And Installing: Removing

-- Disconnect the battery. Refer to BATTERY .

-- Remove the radio/navigation system frame. Refer to INSTRUMENT PANEL .

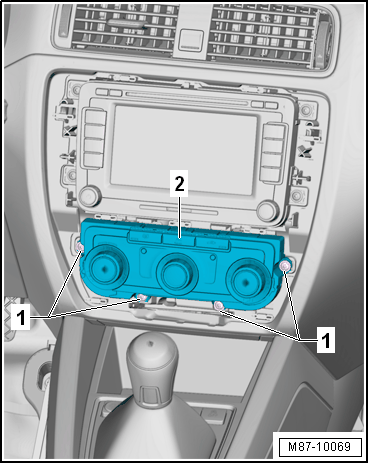

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the display control head -2- and disconnect the connectors on the rear side while doing this.
