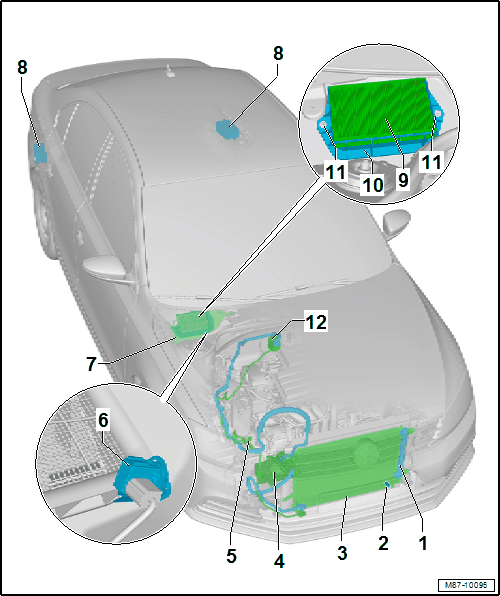

Component Location Overview - Components Outside Of Vehicle Interior

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Desiccant Bag/Dryer Cartridge
   • Overview. Refer to SYSTEM OVERVIEW - REFRIGERANT CIRCUIT .
   • Removing and installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
2. Outside Air Temperature Sensor -G17-
   • Checking via the Vehicle Electrical System Control Module -J519-. Refer to Vehicle Diagnostic Tester.
   • Removing and installing. Refer to Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING .
3. Condenser
   • Overview. Refer to OVERVIEW - CONDENSER .
   • Removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
4. A/C Compressor
   • Overview. Refer to OVERVIEW - A/C COMPRESSOR POWER UNIT .
   • Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
   • Removing and installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
5. Refrigerant Lines
   • System Overview - Refrigerant Circuit. Refer to SYSTEM OVERVIEW - REFRIGERANT CIRCUIT .
   • Refrigerant Line from Condenser to Evaporator, Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO EVAPORATOR, REMOVING AND INSTALLING .
   • Refrigerant Line from Condenser to A/C Compressor, Removing and installing. Refer to REFRIGERANT LINE FROM CONDENSER TO A/C COMPRESSOR, REMOVING AND INSTALLING .
   • Refrigerant Line from A/C Compressor to Evaporator, Removing and installing. Refer to REFRIGERANT LINE FROM A/C COMPRESSOR TO EVAPORATOR, REMOVING AND INSTALLING .
6. Air Quality Sensor -G238-
   • Only for vehicles with Climatronic.
   • Checking. Refer to Vehicle Diagnostic Tester.
   • Function mode. Refer to Air Quality Sensor -G238- FUNCTION .
   • Removing and installing. Refer to Air Quality Sensor -G238-, REMOVING AND INSTALLING .
7. Fresh Air Intake Cover
   • Removing and installing. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
8. Vehicle Interior Forced Air Extraction
   • Checking using the Vehicle Diagnostic Tester. Refer to VEHICLE INTERIOR FORCED AIR EXTRACTION, CHECKING .
   • Removing and installing. Refer to VEHICLE INTERIOR FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
9. Filter Element for Fresh Air Intake
   • Optional.
   • Removing and installing. Refer to FRESH AIR INTAKE FILTER ELEMENT, REMOVING AND INSTALLING .
10. Fresh Air Intake
    • Removing and installing. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
11. Nuts
    • 2.5 Nm
12. Expansion Valve
    • Tightening specification. Refer to SYSTEM OVERVIEW - REFRIGERANT CIRCUIT .
    • Removing and installing. Refer to EXPANSION VALVE, REMOVING AND INSTALLING .
