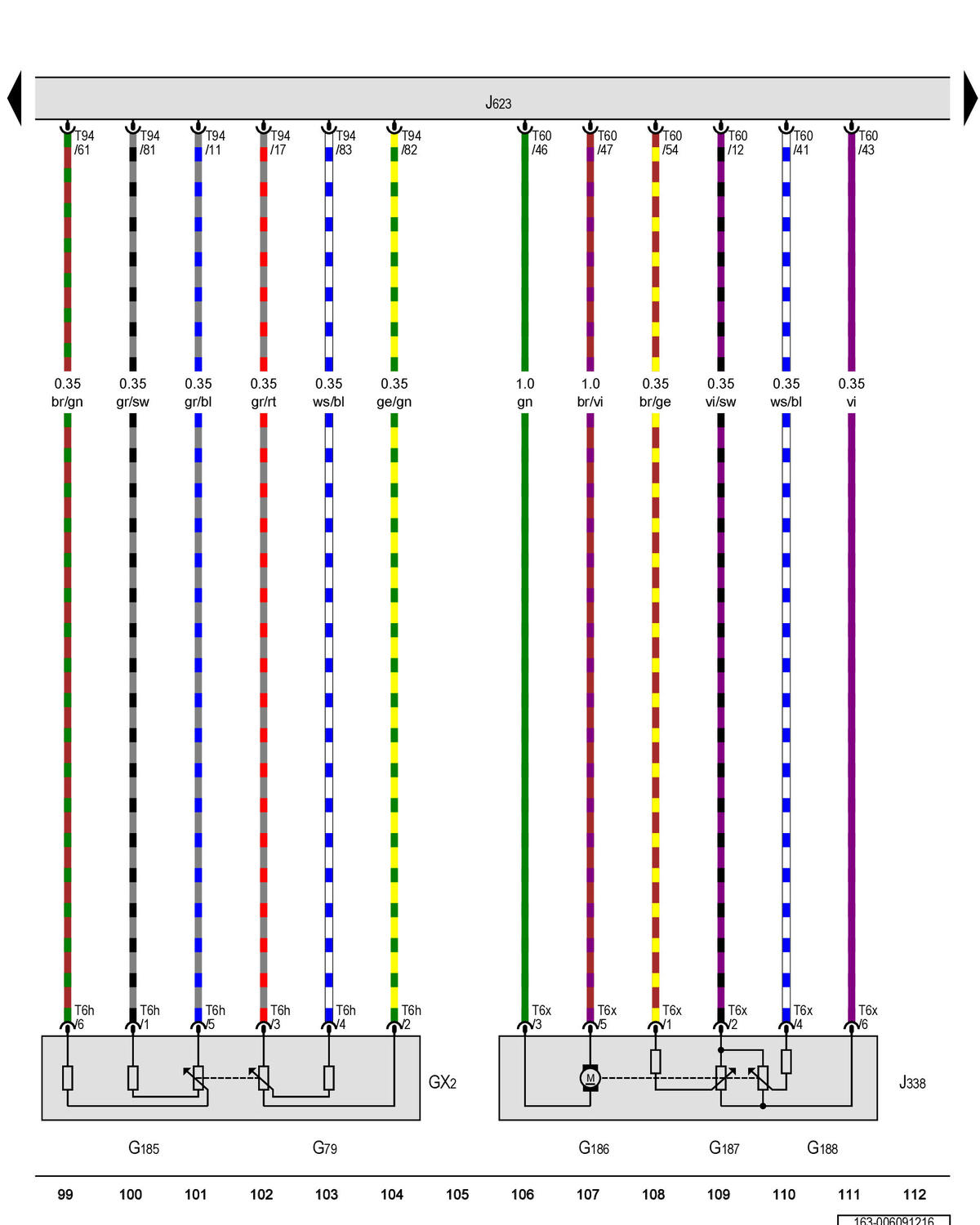

Accelerator Pedal Module, Accelerator Pedal Position Sensor 2, EPC Throttle Drive, Throttle Valve Control Module, Engine Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX2

Accelerator pedal module

G79

Accelerator pedal position sensor

G185

Accelerator pedal position sensor 2

G186

EPC throttle drive

G187

EPC throttle drive angle sensor 1

G188

EPC throttle drive angle sensor 2

J338

Throttle valve control module

J623

Engine control module

T6h

6-pin connector

T6x

6-pin connector

T60

60-pin connector

T94

94-pin connector
