Windshield Washer Fluid Reservoir, Removing And Installing: Notes
NOTE:

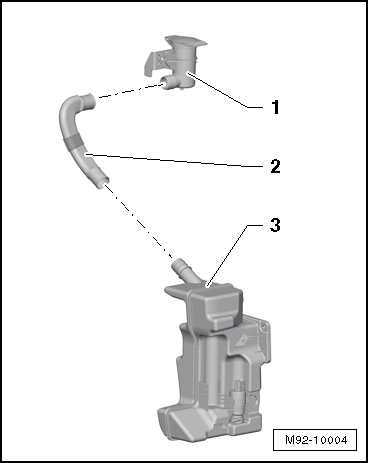

The windshield washer fluid reservoir has three parts. The individual components are connected. In order to guarantee the correct position of the parts with respect to each other, make sure that the guides present on the individual components engage in each other during assembly.
- Filler tube, removing and installing. Refer to FILLER TUBE, REMOVING AND INSTALLING .
- Filler tube connecting pipe to windshield washer fluid reservoir. The connecting pipe and the windshield washer fluid reservoir are removed. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Washer fluid reservoir, removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
