Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the right air grille from the front bumper. Refer to FRONT BUMPER .

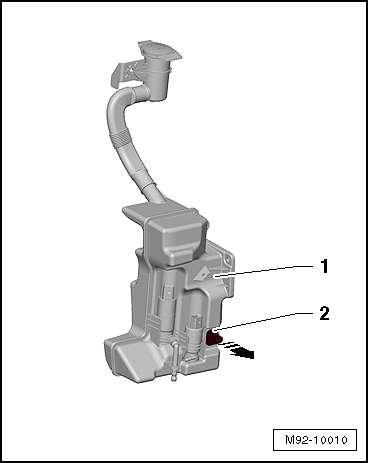

-- Disconnect the connector from the Windshield Washer Fluid Level Sensor -G33- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the Windshield Washer Fluid Level Sensor -G33- -2- out of the rubber seal on the washer fluid reservoir -1-.

-- Catch any draining washer fluid in a suitable container.
