Left/Right Front Treble Speaker -R20- / -R22-, Removing And Installing: Removing

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Remove the A-pillar trim panel. Refer to PASSENGER COMPARTMENT TRIM .

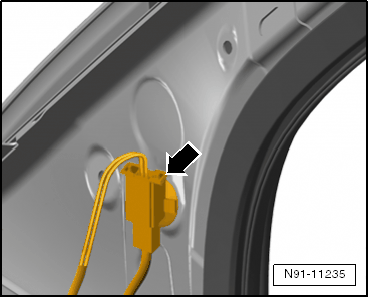

-- Disconnect the connector -arrow- from the A-pillar.

GWWN91-11235Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
