Left/Right Front Bass Speaker -R21- / -R23-, Removing And Installing: Removing

The Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23- are installed in the front doors.

-- Switch off the ignition and all electrical consumers and remove the ignition key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANELS .

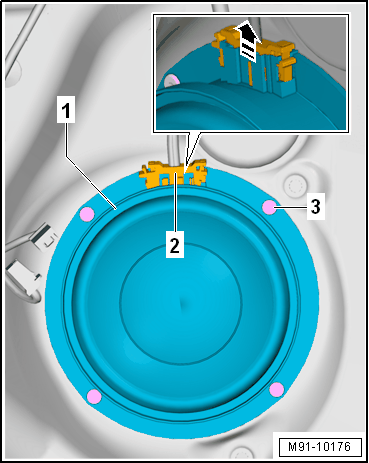

-- Disconnect the connector -2- in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the rivets -3- with a suitable drill.

-- Remove the speaker -1-.

NOTE:

Remove the shavings and the remainder of the rivets from the door.
