Special Tools

WARNING: This page is about a different car, the 2017 Volkswagen Golf R and 2016 Volkswagen Golf R. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

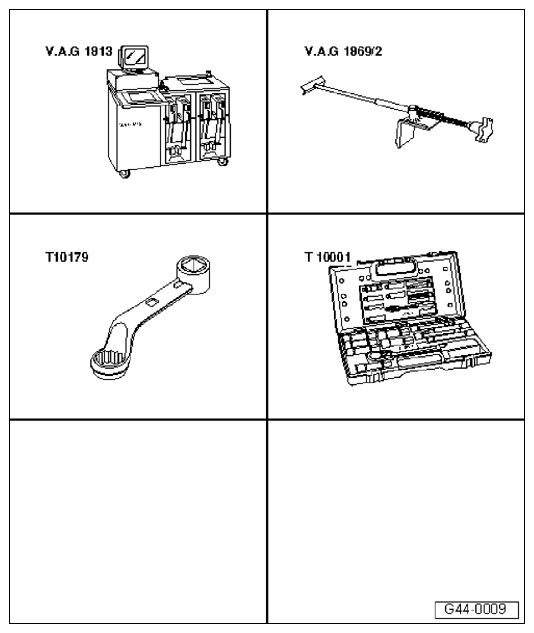

Wheel Alignment Computer - VAG1813F- or VW/Audi approved wheel alignment devices
Brake Pedal Actuator - VAG1869/2-.
Insert Tool - 18 mm - T10179-
Shock Absorber Set - T10001-
Torque Wrench 1332 40-200 Nm - VAG1332-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1332 Insert - Open Ring Wrench - 24 mm - VAG1332/9-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
ACC Adjuster - VAS6190/2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Setting Device Basic Set - VAS6430/1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Wheel Alignment Computer
Vehicle Diagnostic Tester
