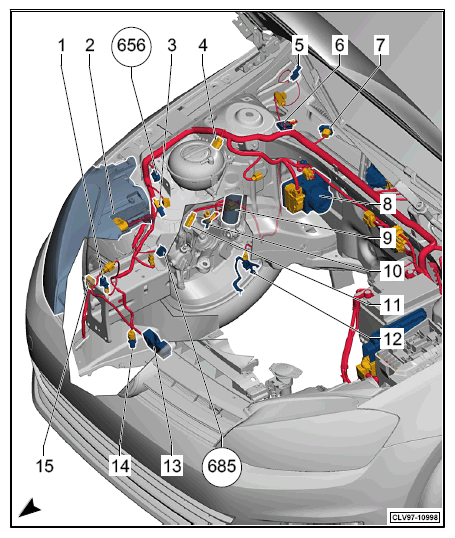

Engine Compartment, RF Side
- 1 - Passenger side front airbag crash sensor -G284-
- 2 - Right front headlamp -MX2-
- 2 - Anti-theft immobilizer system control module -J334-
- 2 - Right headlamp power output stage -J668-
- 2 - Right daytime running lamp and position lamp control module -J861-
- 2 - Right daytime running lamp and position lamp LED module -L177-
- 3 - Refrigerant circuit pressure sensor -G805-
- 4 - Engine coolant level sensor -G32-
- 5 - Windshield defogger -Z2-
- 6 - Right front body acceleration sensor -G342-
- 7 - Air quality sensor -G238-
- 8 - ABS control module -J104-
- 8 - Electromechanical parking brake control module -J540-
- 8 - ABS hydraulic pump -V64-
- 8 - 46-pin connector -T46a-
- 9 - Right front suspension strut valve -N149-
- 9 - Right front damping adjustment valve -N337-
- 10 - Right front ABS wheel speed sensor -G45-
- 11 - Right front brake pad wear sensor -G35-
- 12 - Right front level control sensor -G289-
- 13 - Hood contact switch -F387-
- 14 - Engine coolant temperature sensor on radiator outlet -G83-
- 15 - Auxiliary heater control module -J364-
- 656 - Ground connection on right headlamp
- 685 - Ground connection 1 on right front longitudinal member
