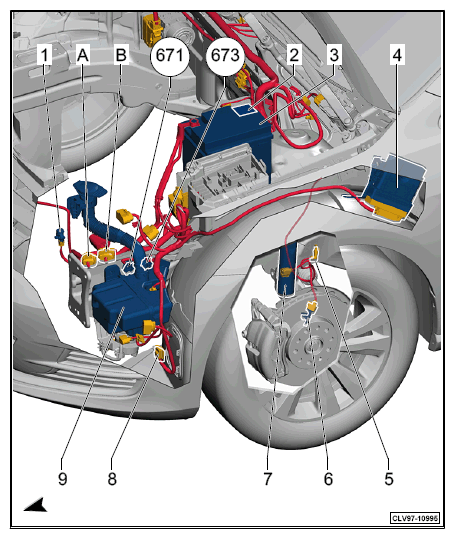

Engine Compartment, LF Part II
- 1 - Driver front airbag crash sensor -G283-
- 2 - Battery monitoring control module -J367-
- 3 - Battery -A-
- 4 - Transmission control module -J217-
- 5 - Left front level control system sensor -G78-
- 6 - Left front ABS wheel speed sensor -G47-
- 7 - Left front suspension strut valve -N148-
- 7 - Left front damping adjustment valve -N336-
- 8 - Not connected
- 9 - Windshield washer fluid level sensor -G33-
- 9 - Headlamp washer pump -V11-
- 9 - Windshield washer pump -V5-
- A - 10-pin connector -T10af-
- A - 10-pin connector -T10ag-
- A - 8-pin connector -T8as-
- A - 8-pin connector -T8at-
- B - 14-pin connector -T14h-
- B - 14-pin connector -T14i-
- 671 - Ground connection 1 on left front longitudinal member
- 673 - Ground connection 3 on left front longitudinal member
