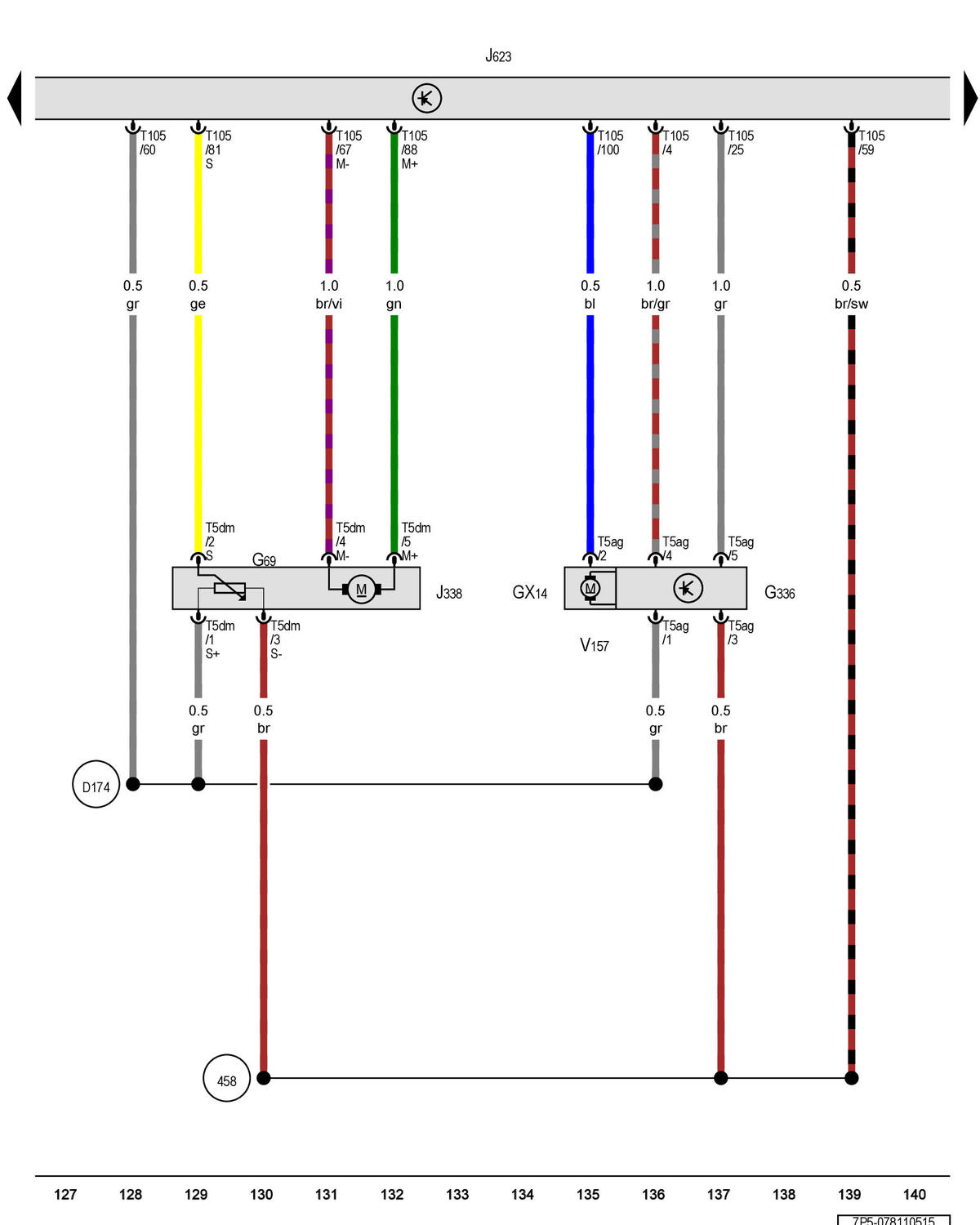

Intake Flap Control Unit, Throttle Position Sensor, Intake Manifold Runner Position Sensor, Throttle Valve Control Module, Engine Control Module, Intake Flap Motor: Notes

GWW7P5-078110515Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
