Spark Plugs, Replacing: Notes

2.0L TSI

Special Tools And Workshop Equipment Required

• Spark Plug Removal Tool 3122 B

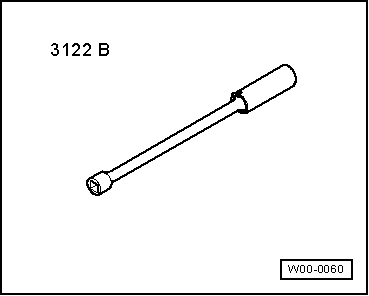

  Fig 1: Identifying Spark Plug Removal Tool 3122 B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 5-50 Nm VAG 1331
  Fig 2: Identifying Torque Wrench (5 To 50 Nm) VAG 1331

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller - Ignition Coil T10094 A for 1.4L TSI

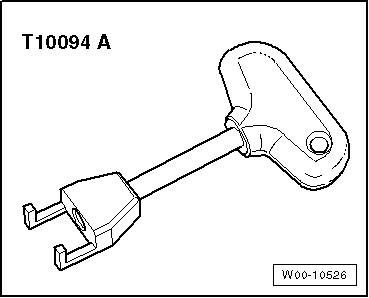

  Fig 3: Identifying Puller T10094 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Puller - Ignition Coil T40039 for 2.0L TSI
  Fig 4: Identifying Extractor T40039

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
