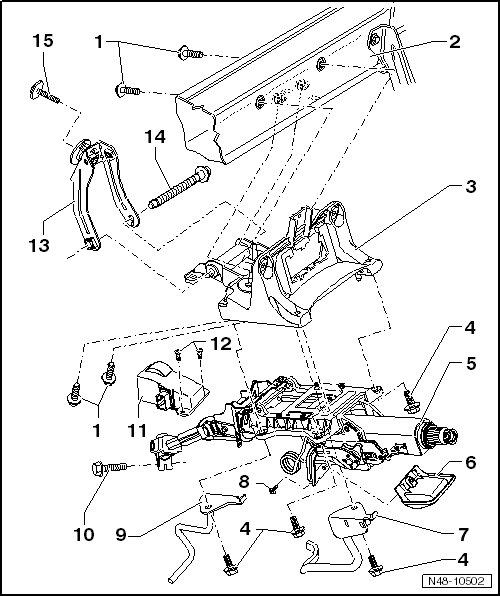

Steering Column Overview
NOTE:
Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
- Bolt
- 20 Nm
- M8 x 30, M8 x 85
- Steering Column Cross Member
- Bracket
- Removing and installing, refer to STEERING COLUMN BRACKET .
- Bolt
- 20 Nm
- Always replace if removed.
- M8 x 30
- Steering Column
- Removing and installing, refer to STEERING COLUMN .
- Handle
- Brake Pedal Impact Brace
- Bolt
- 3 Nm
- M6 x 10
- Clutch Pedal Impact Brace
- Bolt
- 20 Nm + an additional 90° (1/4) l turn.
- Always replace if removed.
- M8 x 35
- Electronic Steering Column Lock Control Module -J764-
- Removing and installing, refer to Electronic Steering Column Lock Control Module -J764- .
- Shear Head Bolt
- Cross Support
- Bolt
- 20 Nm
- M8 x 94
- Bolt
- 20 Nm
- M8 x 48
