Windshield Overview

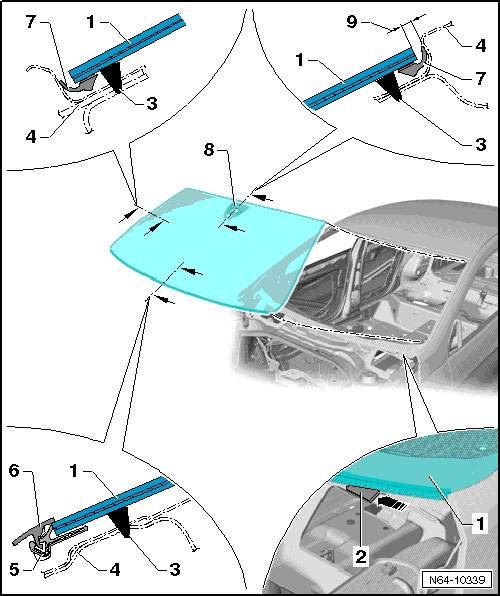

Fig 1: Windshield Assembly Overview
GWWN64-10339Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Windshield
  2. Window Adjuster
    • 443.845.631 A
  3. PUR Adhesive Sealant
    • Bead diameter: width = 7 mm, height = 11 mm (including pre-coating, residual material on window glass and window flange)
    • Minimum curing time, refer to MINIMUM CURING TIME FOR BONDED WINDOWS
  4. Body Flange
  5. Retainer
    • Is a part of the windshield
  6. Plenum Chamber Cover
    • Must only be pulled out of binding profile by hand
    • Plenum chamber cover, removing and installing, refer to PLENUM CHAMBER COVER
  7. Sealing Lip
  8. Communication Window
    • Only with tinted glass
    • There is no infrared reflecting coating in this area, it serves to fulfill function of electronic components installed as retail accessories
  9. Gap Dimension
    • From window edge to roof edge
    • Set a constant dimension of 2.5 mm using the Gauge - Gap Adjustment3371
