RNS 510 Radio Navigation System Overview

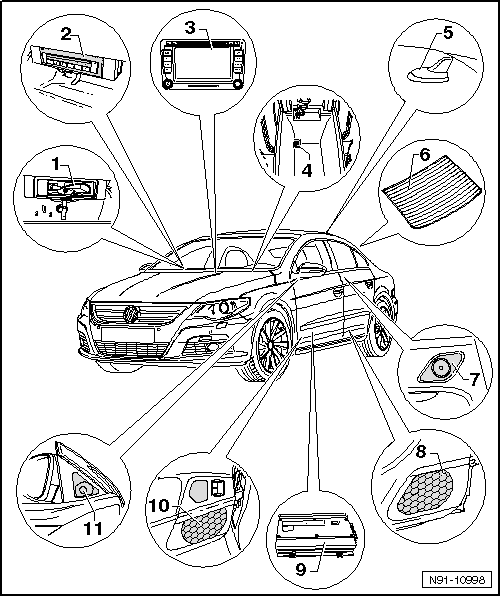

Fig 1: Identifying RNS 510 Radio Navigation System Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

External Multimedia Device Interface -R215-
- Located inside the glove compartment.
- Additional information can be found in EXTERNAL MULTIMEDIA DEVICE INTERFACE R215 .
- Optional installation of CD changer -R41- or External multimedia device interface -R215-. Both systems are not available together because they both use the same installation location.
CD Changer -R41-
- 6 disc CD changer
- Located inside the glove compartment.
- Additional information can be found in CD CHANGER -R41- .
- Optional installation of CD changer -R41- or External multimedia device interface -R215-. Both systems are not available together because they both use the same installation location.
Radio/RNS -RX1-
- RNS 510
- Removing and installing, refer to RADIO/NAVIGATION SYSTEMS -R- / -J503- .
- Connector overview, refer to CONNECTOR ASSIGNMENTS .
- Electronic Anti-Theft System, refer to RCD 510 (PREMIUM 8) RADIO .
External Audio Source Connection -R199-
- Located inside the storage compartment under the center armrest.
- Additional information can be found in EXTERNAL AUDIO SOURCE CONNECTORS R199 .
Roof Antenna -RX5-
- Located on the roof at the back of the vehicle.
- Additional information can be found in ANTENNA SYSTEM, STANDARD VERSION, OVERVIEW .
Antenna -R11- and Radio Antenna 2 -R93-
- Installed in the rear window, for radio reception with diversity function.
- Antenna for digital radio reception, DAB, also optional.
- Additional information can be found in ANTENNA SYSTEM, STANDARD VERSION, OVERVIEW .
Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in the door trim panel for the left and right rear door.
- Additional information can be found in SPEAKERS .
Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in the door trim panel for the left and right rear door.
- Additional information can be found in SPEAKERS .
Digital Sound System Control Module -R12-
- Installed under the left front seat.
- Additional information can be found in AMPLIFIER -R12- .
Right Front Midrange Speaker -R104- and Left Front Midrange Speaker -R103-, Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in door trim of left and right front doors.
- Midrange speakers are only installed in conjunction with sound system.
- Midrange and bass speakers are installed as one unit.
- Only the bass speaker is installed here when there is no sound system. Midrange frequencies play through the bass and treble speakers.
- Additional information can be found in SPEAKERS .
Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in triangle window of left and right front doors.
- Additional information can be found in SPEAKERS .
