RNS 315 Radio Navigation System Overview

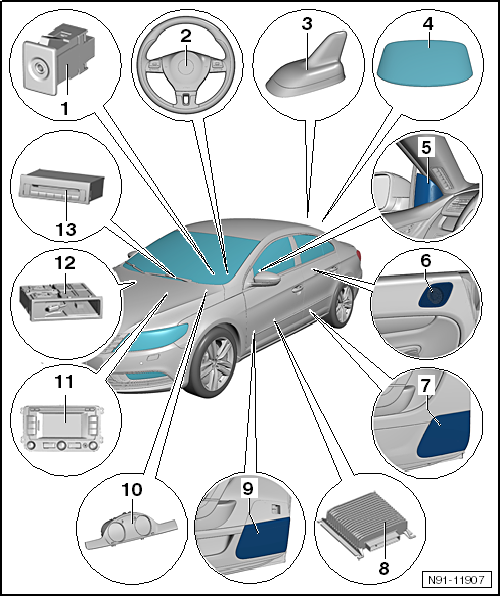

Fig 1: Identifying RNS 315 Radio Navigation System Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. External Audio Source Connection -R199-
   • Located inside the storage compartment under the center armrest.
   • Additional information can be found in EXTERNAL AUDIO SOURCE CONNECTORS R199 .
2. Left Multifunction Buttons On Steering Wheel -E440- and Right Multifunction Buttons On Steering Wheel -E441-
   • Additional information can be found in MULTIFUNCTION STEERING WHEEL RADIO AND RADIO/NAVIGATION DISPLAY UNIT CONTROL MODULE -R- / -J503- COMPONENTS .
3. Roof Antenna -RX5-
   • Located on the roof at the back of the vehicle.
   • Installed only if, in addition to the radio, a telephone is installed at the factory
   • Additional information can be found in ANTENNA SYSTEM, STANDARD VERSION, OVERVIEW .
4. Antenna -R11- and Radio Antenna 2 -R93-
   • Inside the rear window.
   • AM and FM antenna with diversity function.
   • Additional information can be found in ANTENNA SYSTEM, STANDARD VERSION, OVERVIEW .
5. Left Front Treble Speaker -R20- and Right Front Treble Speaker -R22-
   • Inside the left and right front mirror triangle.
   • Additional information can be found in SPEAKERS .
6. Left Rear Treble Speaker -R14- and Right Rear Treble Speaker -R16-
   • Installed inside the left and right rear door trim panels.
   • Additional information can be found in SPEAKERS .
7. Left Rear Bass Speaker -R15- and Right Rear Bass Speaker -R17-
   • Installed inside the left and right rear doors.
   • Additional information can be found in SPEAKERS .
8. Digital Sound System Control Module -R12-
   • Optional
   • Installed under the left front seat.
   • Additional information can be found in AMPLIFIER -R12- .
9. Left Front Bass Speaker -R21- and Right Front Bass Speaker -R23-
   • Installed inside the left and right front doors.
   • Additional information can be found in SPEAKERS .
10. Instrument Cluster Control Module -J285-
11. Radio/RNS -RX1-
    • RNS 315
    • Removing and installing, refer to RADIO/NAVIGATION SYSTEMS -R- / -J503- .
    • Connector overview, refer to CONNECTOR ASSIGNMENTS .
    • Anti-theft coding, refer to RNS 315 RADIO NAVIGATION SYSTEM .
12. External Multimedia Device Interface -R215-
    • Located inside the glove compartment.
    • Additional information can be found in EXTERNAL MULTIMEDIA DEVICE INTERFACE R215 .
    • It is not possible to have a CD changer -R41- if the vehicle has an external multimedia device interface because they both have the same installed location.
13. CD Changer -R41-
    • Located inside the glove compartment.
    • Additional information can be found in CD CHANGER -R41- .
    • It is not possible to have a CD changer if the vehicle has an External multimedia device interface -R215- because they both have the same installed location.
