Central Locking Component Location Overview

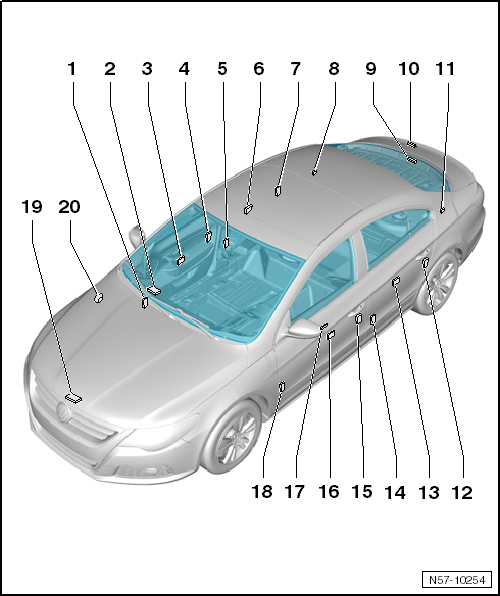

Fig 1: Central Locking Component Location Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector Station
- Installed location: right A-pillar
- To disconnect harness connector, release bellows at pillar, refer to DOOR
Comfort System Central Control Module -J393-
- Installed location: under the instrument panel on the front passenger side
- Removing, refer to [For engine(s) CNNA, CCTA, CBFA] Removal and Installation
Front Passenger Door Control Module -J387-
- Integrated in window regulator motor
- Removing, refer to FRONT WINDOW REGULATOR MOTOR
Front Passenger Central Locking Lock Unit -F221-
- Door lock is secured to subframe
- Electrical central locking system is integrated in door lock
- Removing, refer to DOOR LOCK
Connector Station
- Installed location: right B-pillar
- To disconnect harness connector, release bellows at pillar
Right Rear Door Control Module -J389-
- Integrated in window regulator motor
- Removing, refer to REAR WINDOW REGULATOR MOTOR
Right Rear Central Locking Lock Unit -F223-
- Door lock is secured to subframe
- Electrical central locking system is integrated in door lock
- Removing, refer to DOOR LOCK
Fuel Tank Lid Unlock Motor -V155-
- Installed location: behind the luggage compartment trim panel on the right side
- Removing, refer to ACTUATOR
Release Button In Rear Lid Handle -E234-
- Installed location: inside the emblem
- Removing, refer to ACTUATOR
Rear Lid Lock Unit -F256-
- Installed location: attached to the rear lid
- Removing and installing, refer to REAR LID LATCH
Rear Lid Connector Station
- Installed location: behind the luggage compartment trim panel on the left side
- Removing and installing, refer to Removal and Installation
Left Rear Central Locking Lock Unit -F222-
- Door lock is secured to subframe
- Electrical central locking system is integrated in door lock
- Removing, refer to DOOR LOCK
Left Rear Door Control Module -J388-
- Integrated in window regulator motor
- Removing, refer to REAR WINDOW REGULATOR MOTOR
Connector Station
- Installed location: left B-pillar
- To disconnect harness connector, release bellows at pillar
Driver Central Locking Lock Unit -F220-
- Door lock is secured to subframe
- Electrical central locking system is integrated in door lock
- Removing, refer to DOOR LOCK
Driver Door Control Module -J386-
- Integrated in window regulator motor
- Removing, refer to FRONT WINDOW REGULATOR MOTOR
Central Window Regulator Switch In Driver Door -E189-
- Installed location: inside the door trim panel
- Removing and installing the window regulator central switch, refer to [For engine(s) CNNA, CCTA, CBFA] Removal and Installation
Connector Station
- Installed location: left A-pillar
- To disconnect harness connector, release bellows at pillar DOOR
Engine Hood Contact Switch -F266-
- Removing and installing the contact switch, refer to [For engine(s) CNNA, CCTA, CBFA] Removal and Installation
- Installed location: on the latch
- Hood latch, removing and installing, refer to HOOD LATCH AND CABLE
Alarm Horn -H12-
- Installed location: under the right fender
- Removing, refer to [For engine(s) CNNA, CCTA, CBFA] Removal and Installation
