RCD 210 Radio
Familiarity with the function and operation of the digital sound system is needed if there are customer concerns.
For additional information refer to the Operating instructions.
Anti-theft coding is equipped with a protection code number. Refer to ANTI-THEFT CODING, DEACTIVATING, RCD 210 .
Fervicing or trouble shooting, use the Vehicle Diagnostic Tester in "Guided Fault Finding" and refer to appropriate System Wiring Diagram Information.
When the battery is reconnected, check any affected system or component (radio, clock, comfort electrical connection etc.) according to the repair service information and/or the Owner's Manual.

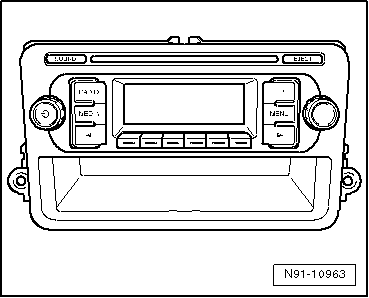

The RCD 210 radio consists of the radio and speakers in doors.
The radio is equipped with a 2x20 watt end stage output performance.
The radio is also available with a 4x20 watt end stage output performance. In this case, there are speakers in the rear.
The speakers are designed as a 2-way system.
Each front door has a bass speaker and a treble speaker.
As an option, each rear door has a bass speaker and a treble speaker.
There is also the possibility to connect a CD changer. If telephones are being used, there is telephone muting and signal input for telephone LF signal available.
The CD drive, which is integrated inside the radio, can play the following CD formats:
- CD-R
- CD-RW
- MP3
Music CDs with 8 cm diameter (mini-discs) cannot be played back.
Mix CDs (CDs that contain computer data and also music) cannot be played.
The antenna is inside the rear window and does not have diversity function.
