Speed Sensor, Rear Axle, AWD: Removing

-- Raise vehicle.

-- Separate speed sensor and speed sensor wiring connector -1-.

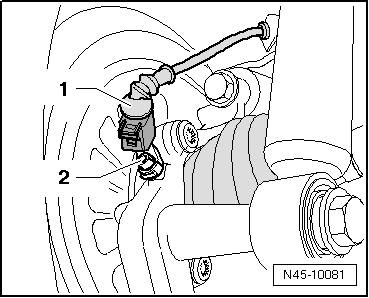

Fig 1: Identifying Speed Sensor Wiring Connector And Bolt On Rear Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove bolt -2- from wheel bearing housing.

-- Remove ABS speed sensor from wheel bearing housing.
