Input Speed Sensor: Installing

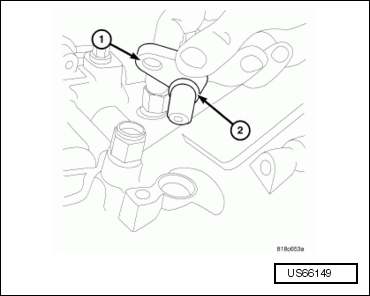

Fig 1: Identifying Speed Sensor And O-Ring

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install a new O-ring (2) onto the input speed sensor (1).

-- Install the input speed sensor (1) into case.

-- Install the input speed sensor bolt. Tighten the bolt to 12 Nm (106 in lbs).

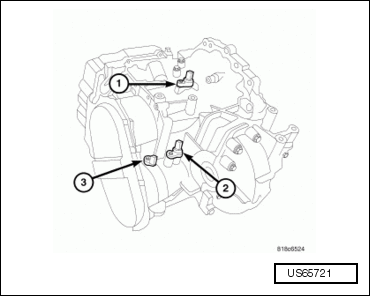

Fig 2: Identifying Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the input speed sensor (1) electrical connector.
